Description
The arc is back. Conjuring up all the nostalgia, hoots and hollars from yesteryear. Its your instant-feedback steed for any trail. Show it your singletrack, pump track and your bikepack route too. Its got history to live up to and new history to make. And its already impatient.
Specification
| Frameset |
| Details | TURQseries carbon |

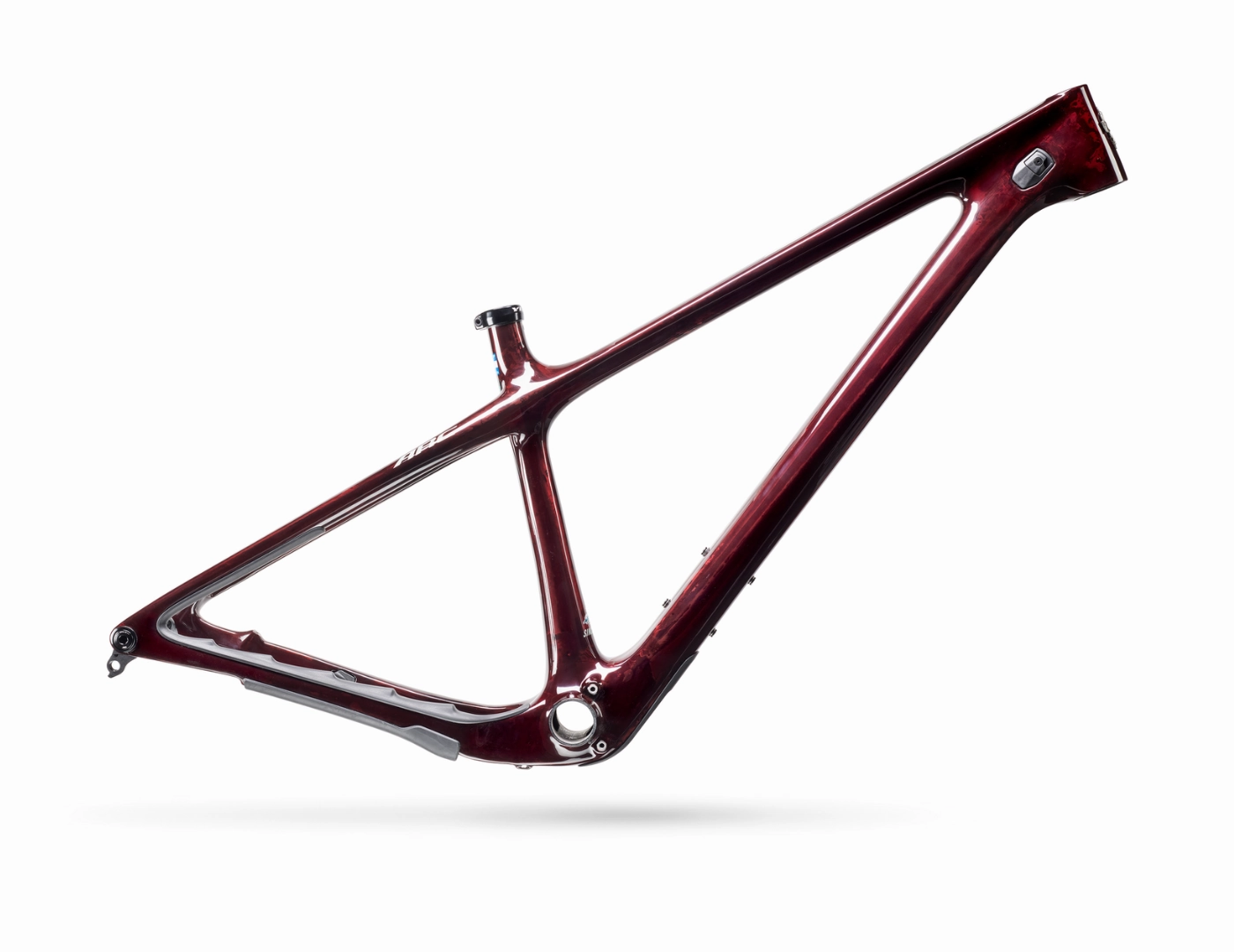

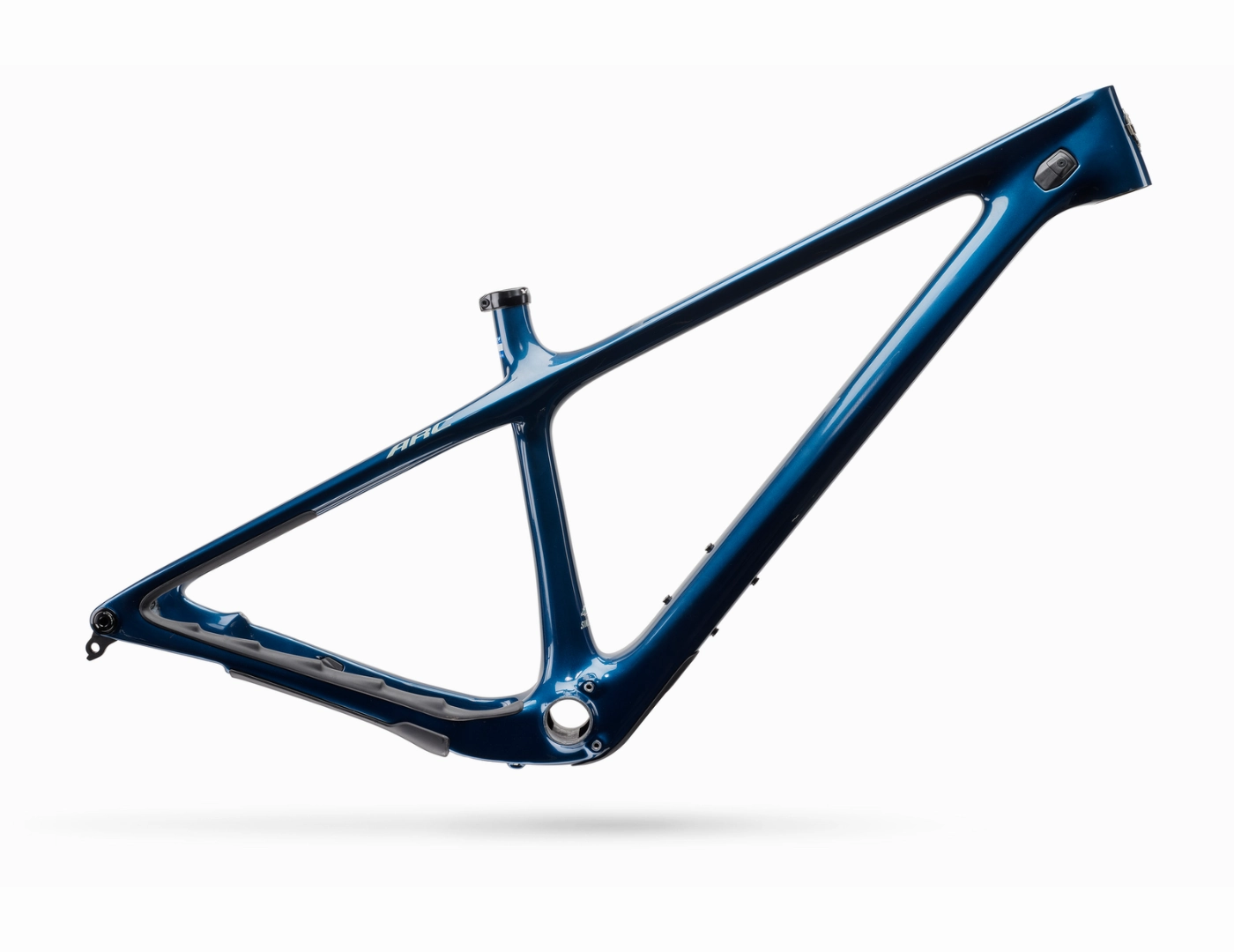

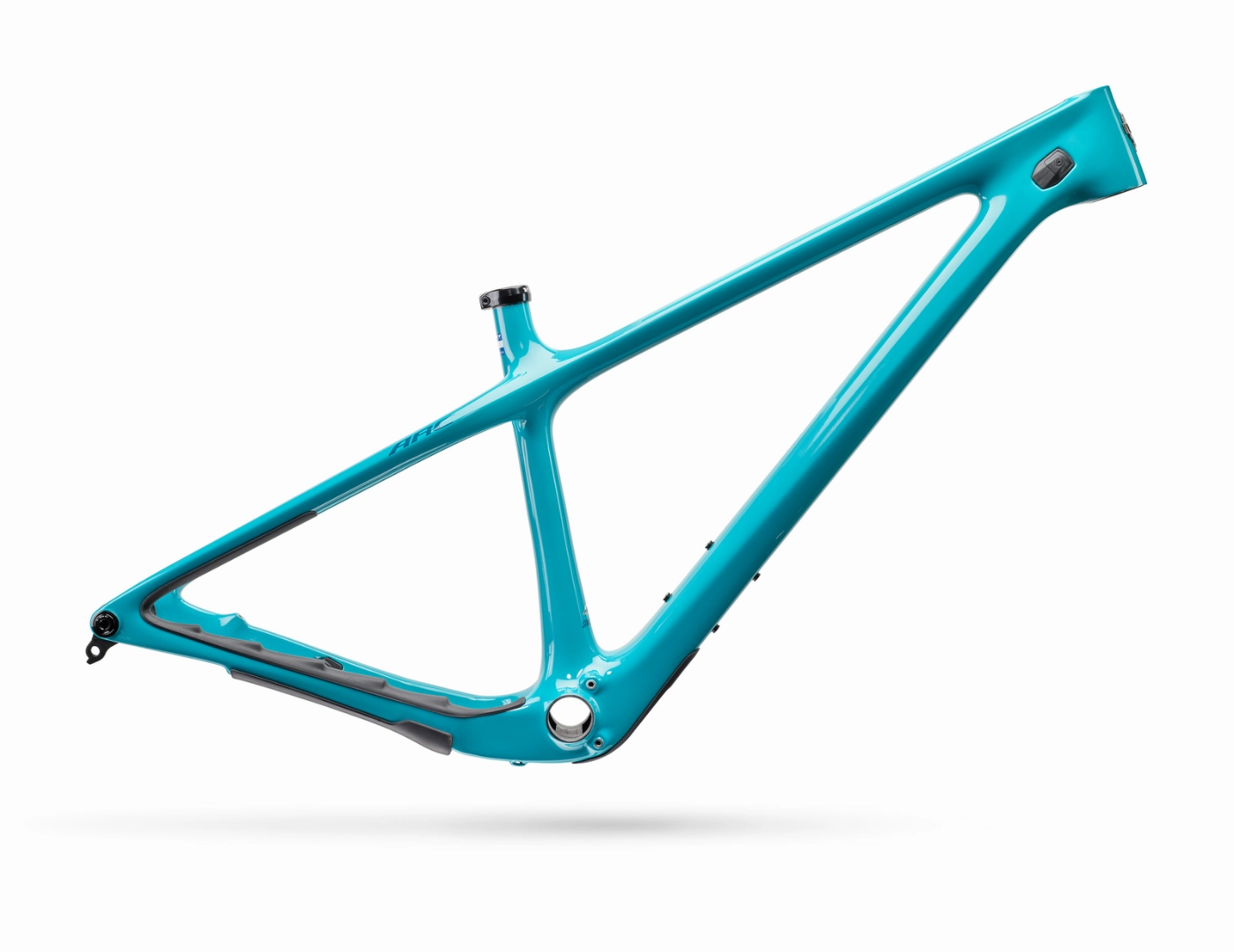

| Frame | TURQseries carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle. |
| Fork | FOX FACTORY 34 FIT4/130MM |
| Material | TURQSERIES |
| Weight | 2.96 |
Geometry
| A | WHEEL SIZE | 29 | 29 | 29 | 29 |
| B | REACH | 16.5 | 17.5 | 18.3 | 19.3 |
| C | EFFECTIVE TOP TUBE LENGTH | 22.7 | 23.8 | 24.6 | 25.7 |
| D | Stack | 24.9 | 25.2 | 25.4 | 25.8 |
| E | HEADTUBE LENGTH | 3.7 | 4.1 | 4.3 | 4.7 |
| F | SEAT TUBE LENGTH | 15 | 16.1 | 17.7 | 19.5 |
| G | EFF. SEAT TUBE ANGLE | 76 | 76 | 76 | 76 |
| H | HEADTUBE ANGLE | 67 | 67 | 67 | 67 |
| I | ESTIMATED BB HEIGHT | 12.2 | 12.2 | 12.2 | 12.2 |
| J | CHAINSTAY LENGTH | 17.0 | 17.0 | 17.0 | 17.0 |
| K | FRONT CENTER | 28.0 | 29.1 | 30.0 | 31.1 |
| L | WHEELBASE | 45 | 46.1 | 47.0 | 48.2 |
| M | STANDOVER | 28.5 | 28.4 | 28.3 | 28.3 |
| N | AXLE TO CROWN | 21.4 | 21.4 | 21.4 | 21.4 |
| O | OFFSET | 1.7 | 1.7 | 1.7 | 1.7 |
| P | VERTICAL FORK TRAVEL | 4.7 | 4.7 | 4.7 | 4.7 |
Size
