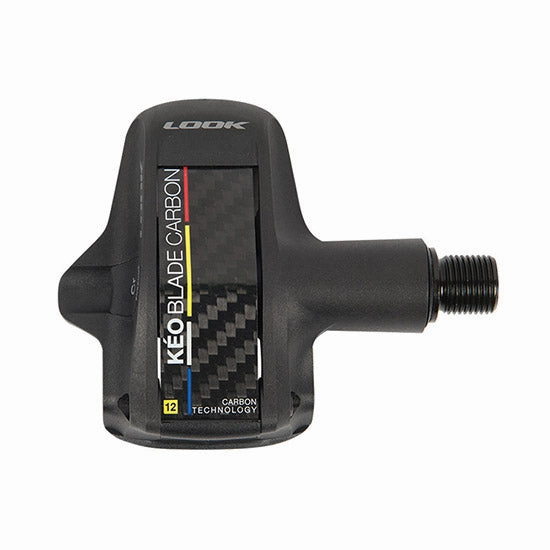

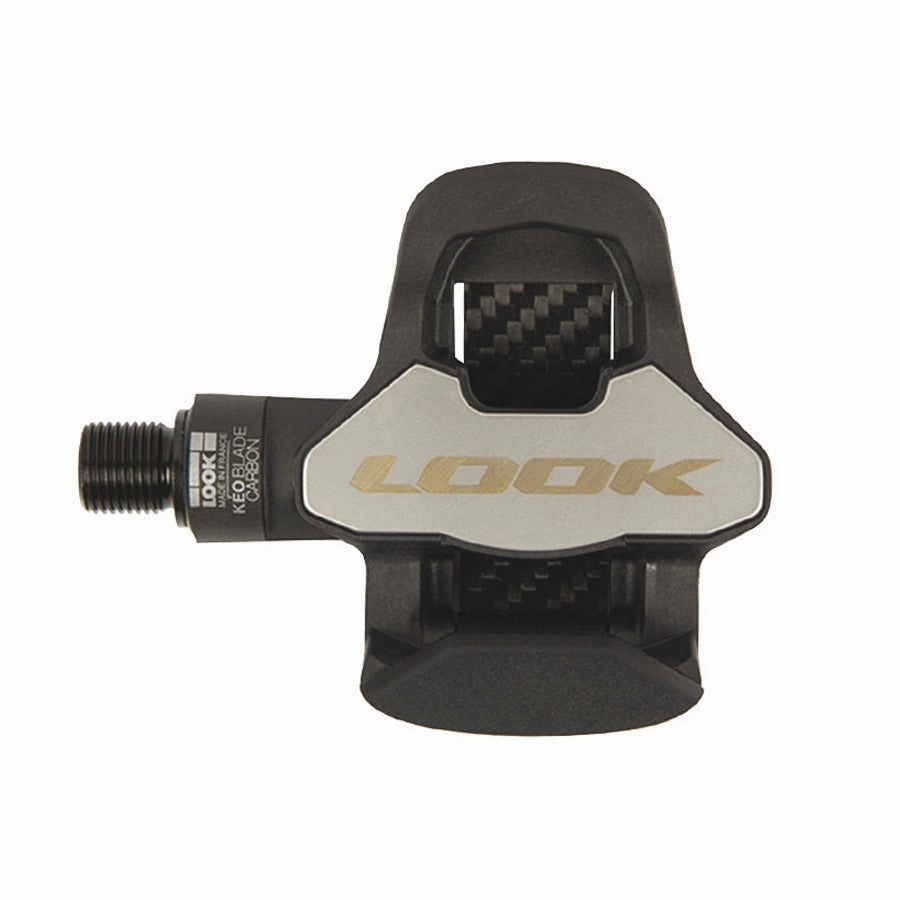

The Blade Carbon is the product of lengthy research by LOOK engineers to optimize all the innovative concepts developed within the family of blade pedals. The result is a pedal that is even more secure, stable, light and powerful.
Its design fully integrates the blade for unsurpassed aerodynamics. Fitted with a carbon body and blade, the Blade Carbon is available in version Ti (titanium axle) weighing only 90g per pedal, or version Cr (Chromoly axle) that weighs 110g per pedal. It is available in three release tensions: 12, 16 and 20.
- Usage: Recreationnal to competition.
- Body: Chromoly .
- Axle: Titanium.
- Threading: 9/16 x 20 mm.
- Bearings: 2 ball bearings, 1 needle bearing cartridge.
- Pedal stack height: 13 mm.
- Distance pedal spindle / crank arm: 53 mm.
- Contact surface area: 700 mm².
- Float: 3 types of carbon blades: 12, 16 and 20.
- Cleats: Kéo cleats grey.
- Angular movement: 0 °, 4.5 ° or 9 ° according to the cleat color (black, grey, red).
- Weight: 110 gr (288 gr per pair with cleats and screws).
- Colors: Black.
- Accessories: A pair of grey kéo cleats screws.
- Guaranty: 2 years.
