Description
Whether youre ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of whats possible on a short travel trail bike.
Specifications

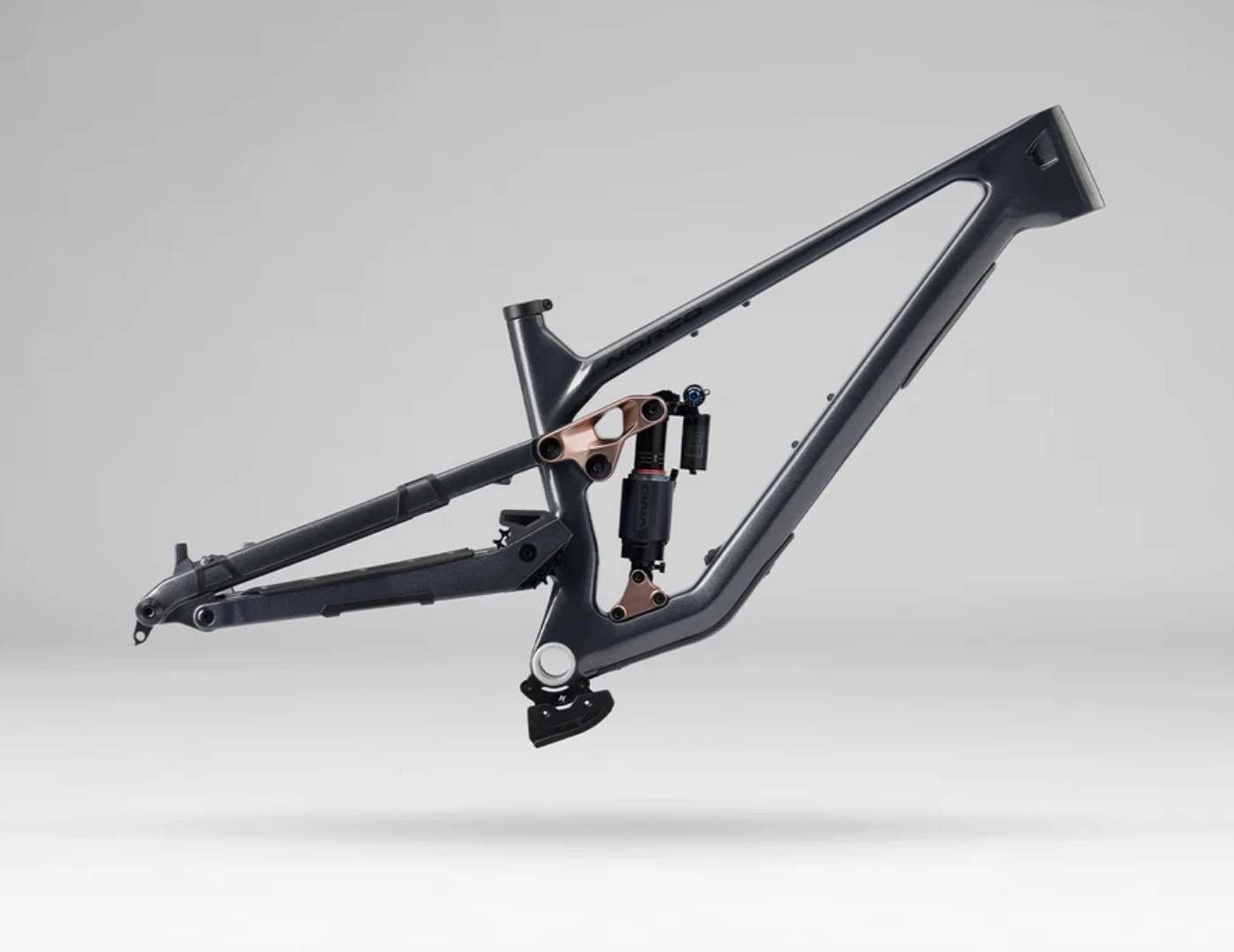

| Frame | Optic Full Carbon, 125mm Travel, VPS HP, UDH, Hangerless Interface Compatible, Ride Aligned |
| Rear Shock | Rockshox Vivid 2 Select air |
| Chain Tensioner | Norco Idler Guide and Lower Guide |
| Seatpost Clamp | Norco Alloy Nutted Clamp |
| Rear Hub Skewer | 148mm x 12mm TA |
| Weight | 3.1 kg (6.7 lbs) |
| Note | Including all hardware, all protection, all plastics, and rear axle/hanger (no shock and no chainguide) |
Geometry
| 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" |
| Travel (mm front/mm rear) |
| 140/125 |
| Reach |
| 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack |
| 608 | 617 | 626 | 635 | 644 | 608 | 617 | 626 | 635 | 644 |
| HTA Head Tube Angle |
| 65 |
| OS Fork Offset |
| 44 |
| ST Seat Tube Length |
| 350 | 370 | 385 | 430 | 445 | 350 | 370 | 385 | 430 | 445 |
| STA Effective Seat Tube Angle |
| 76.5 | 76.75 | 77 | 77.25 | 77.5 | 76.5 | 76.75 | 77 | 77.25 | 77.5 |
| RC Rear Centre Length |
| 415 | 419 | 423 | 427 | 431 | 421 | 425 | 429 | 433 | 437 |
| BBDF/R Bottom Bracket Drop (Front/Rear) |
| 32/11 | 32/11 | 32/11 | 32/11 | 32/11 | 32/32 | 32/32 | 32/32 | 32/32 | 32/32 |
| BBH Bottom Bracket Height |
| 346 |
| HTT Horizontal Top Tube |
| 568 | 593 | 617 | 641 | 665 | 568 | 593 | 617 | 641 | 665 |
| WB Wheelbase |
| 1154 | 1188 | 1221 | 1254 | 1287 | 1159 | 1193 | 1226 | 1259 | 1292 |
| SOH Standover |
| 675 | 677 | 678 | 707 | 705 | 675 | 677 | 678 | 707 | 705 |
| HT Head Tube Length |
| 100 | 110 | 120 | 130 | 140 | 100 | 110 | 120 | 130 | 140 |
| Trail |
| 128 |
| Recommended Seatpost Drop |
| 150 | 170 | 200 | 200 | 230 | 150 | 170 | 200 | 200 | 230 |
| Maximum Post Insertion |
| 250 | 270 | 300 | 300 | 330 | 250 | 270 | 300 | 300 | 330 |
| Stem Length |
| 40 |
| Crank Length |
| 170 |
| Tire Size |
| 2.35" 2.6" |
| Water Bottle Compatible |
| 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
