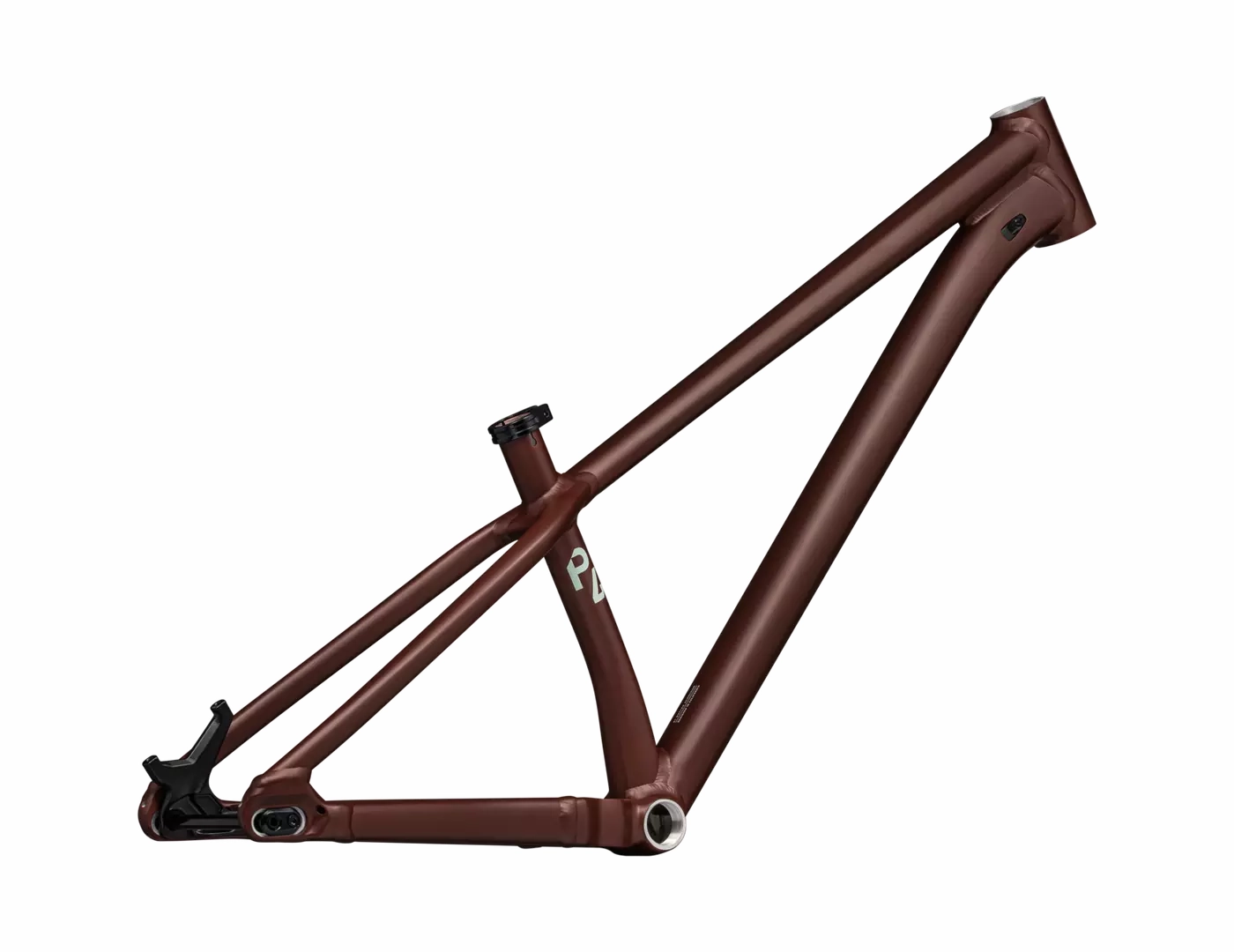

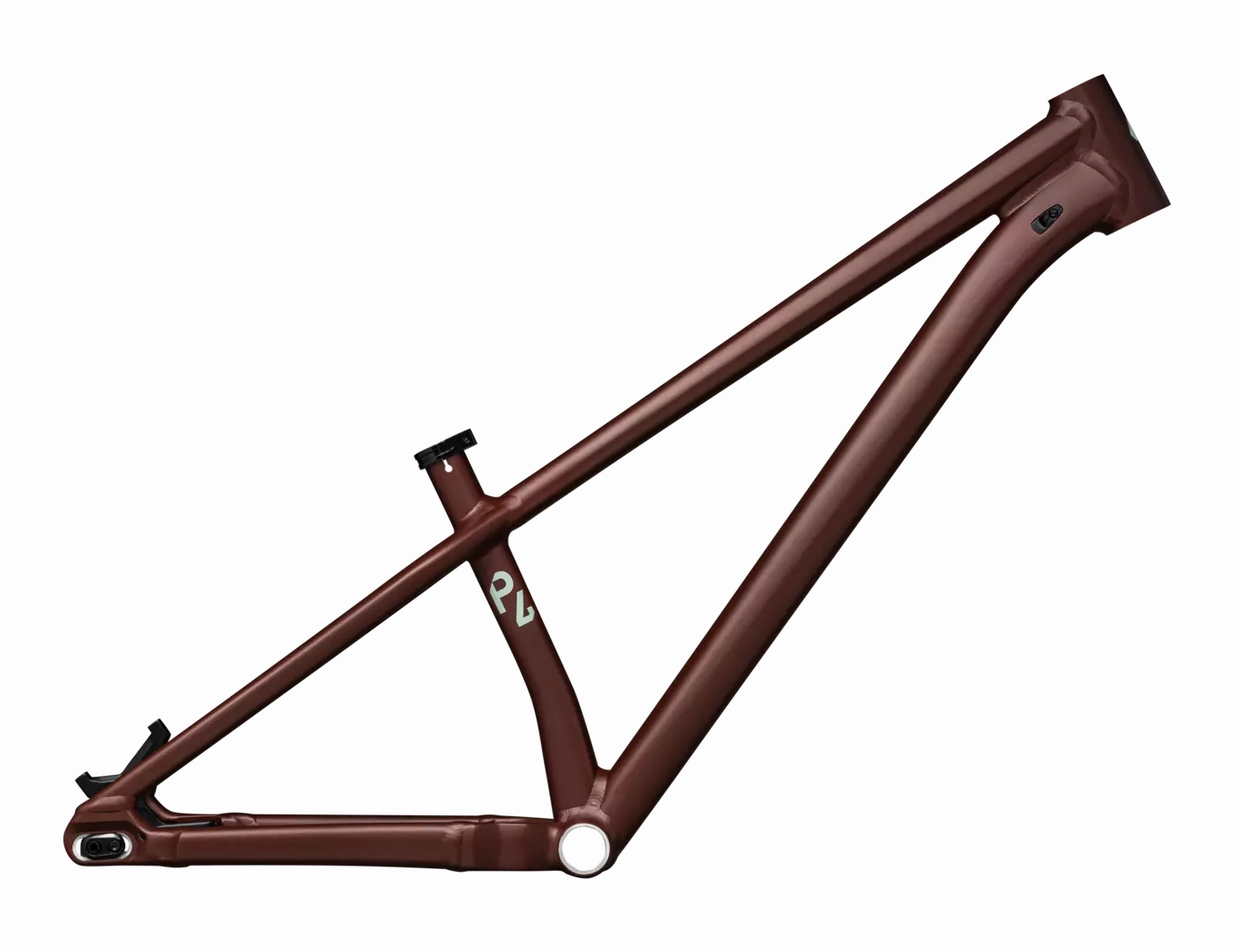

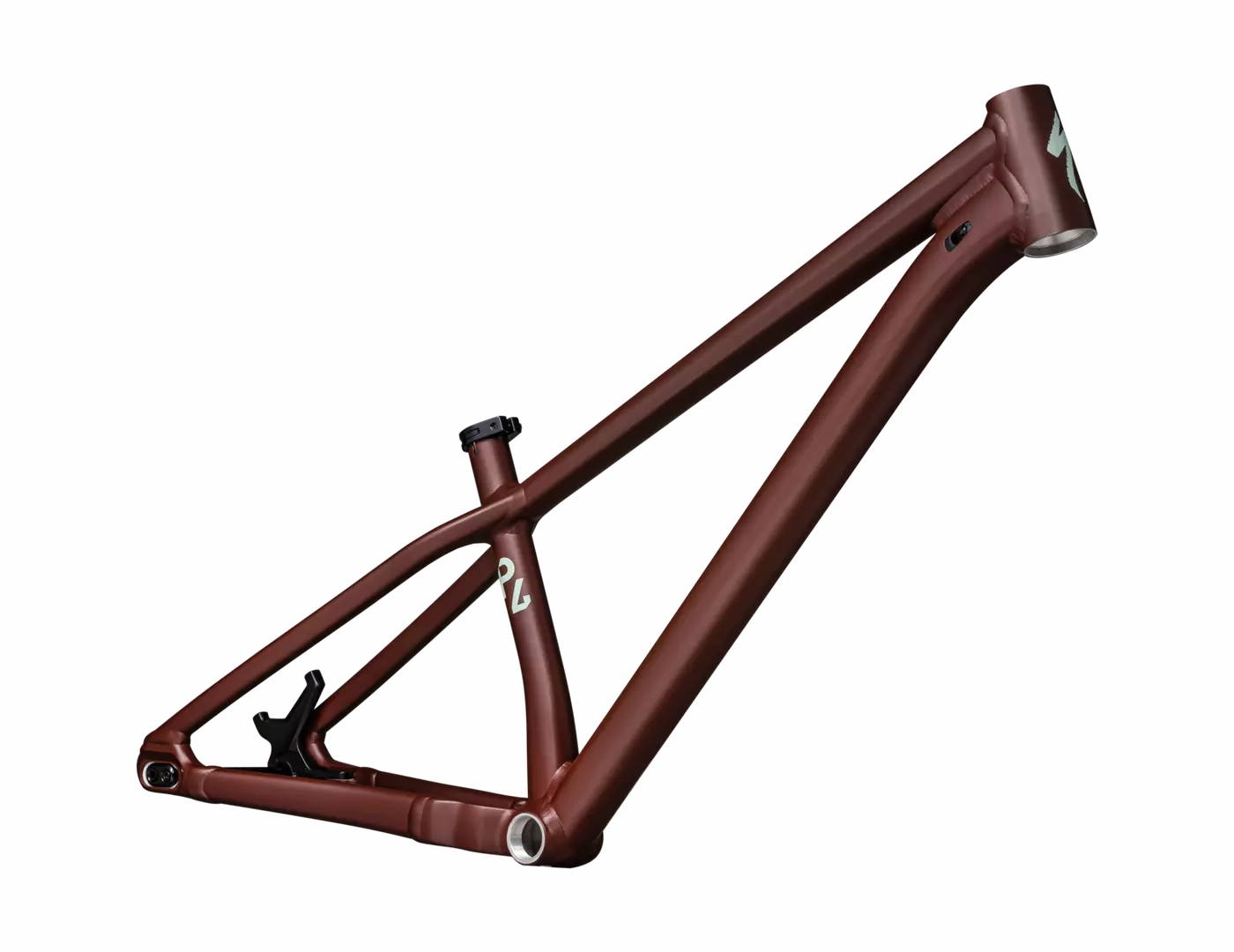

P.4 27.5" Frame 2023

P.4 27.5" Frame 2023

$ 41.83

$ 255.76

Unavailable
P.4 27.5" Frame 2023

P.4 27.5" Frame 2023

$ 41.83

$ 255.76

Colour:
  • Red
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

This totally redesigned P.Series frame gives riders of all sizes a jumping off point to a life on bikes. The lightweight, but tough alloy frame is designed to take all the hits and keep rollingacross all frame sizes. Our approach to these robust bikes centers around delivering a simple, high-quality platform that's versatile for all riders, and packs in category-first features that make a difference to the rider.

SLEEK SIMPLICITY For the rider focusing on progression, eliminating every other variable is paramount. The durable lightweight alloy frame of the P.Series stands up to the tough demands of a modern DJ rig and accepts internally routed cables.

SIZED FOR ALL Frames available in dedicated 20, 24, and 26 configurations as well as the P.4 that can run both 26 and 27.5 (P.4 is specd with 27.5).

REIMAGINE YOUR RIDE P.Series frames are dropper ready, derailleur compatible, and use adjustable dropouts.

TOUGH TECH Boost spacing in the rear, a tapered headtube, and threaded bottom-bracket make P.Series stiff and easy to maintain.

  • Specialized P.4, A1 Premium Alloy, 27.5", fully-butted tubing, dropper post compatible and 26" wheel compatible.
    Specification

    FRAMESET

    Frame

    Specialized P.4, A1 Premium Alloy, 27.5", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible, 26" Wheel Compatible

    Seat Binder

    Alloy, single-bolt, 34.9mm

    Geometry
    27.5"
    Crank Length165
    Handlebar Width750
    Stem Length35
    Saddle Width110
    Seatpost Length200
    Wheel Size27.5
    Chain-Stay Length385
    Wheelbase1094
    Top-Tube Length (horizontal)636
    Bike Stand-Over Height697
    Seat-Tube Length350
    Seat-Tube Angle72
    Fork Rake/Offset44
    Front-Center711
    Stack588
    Reach445
    Head-Tube Length120
    Head-Tube Angle68.5
    B-B Height318
    B-B Drop34
    Trail91
    Fork Length (full)492
