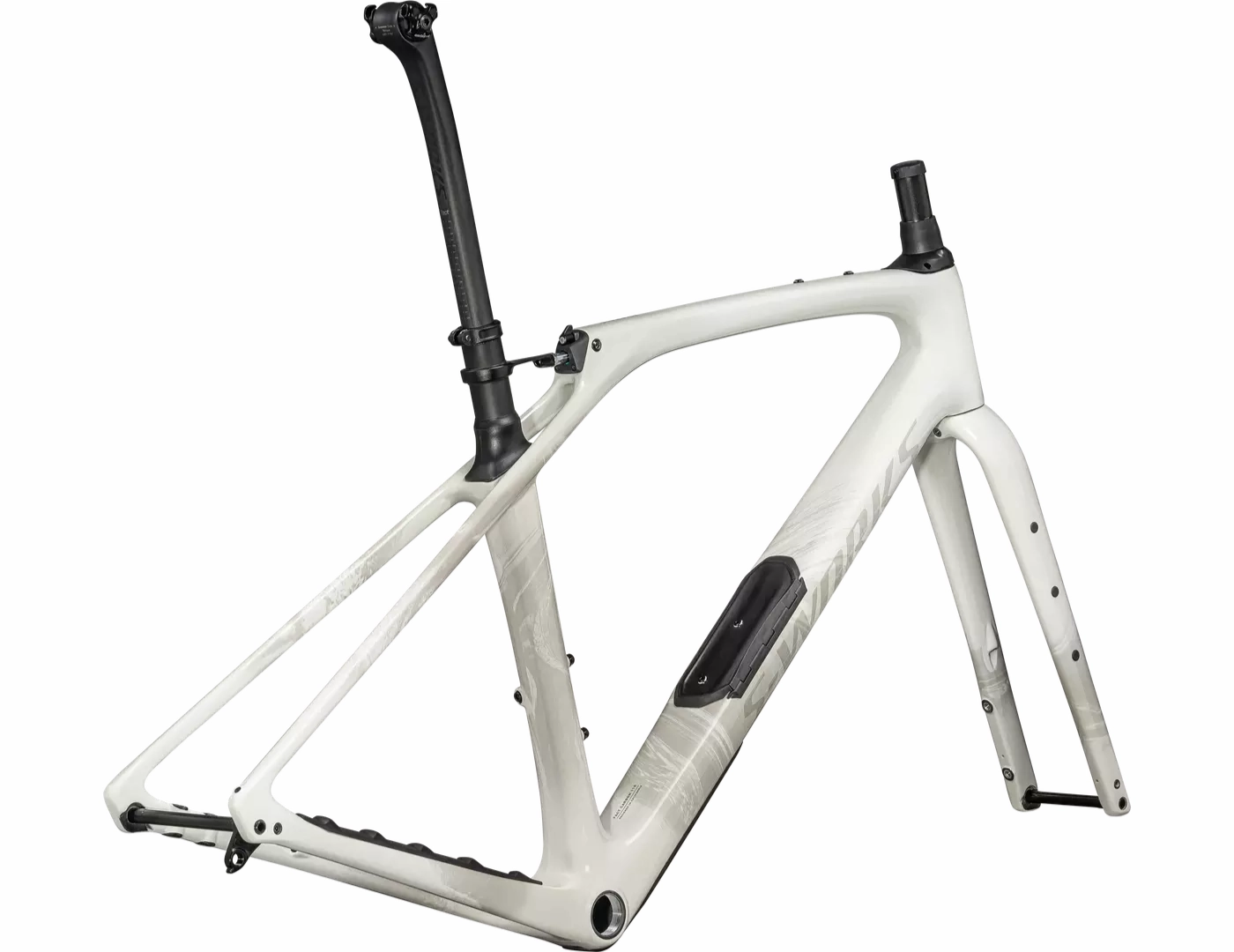

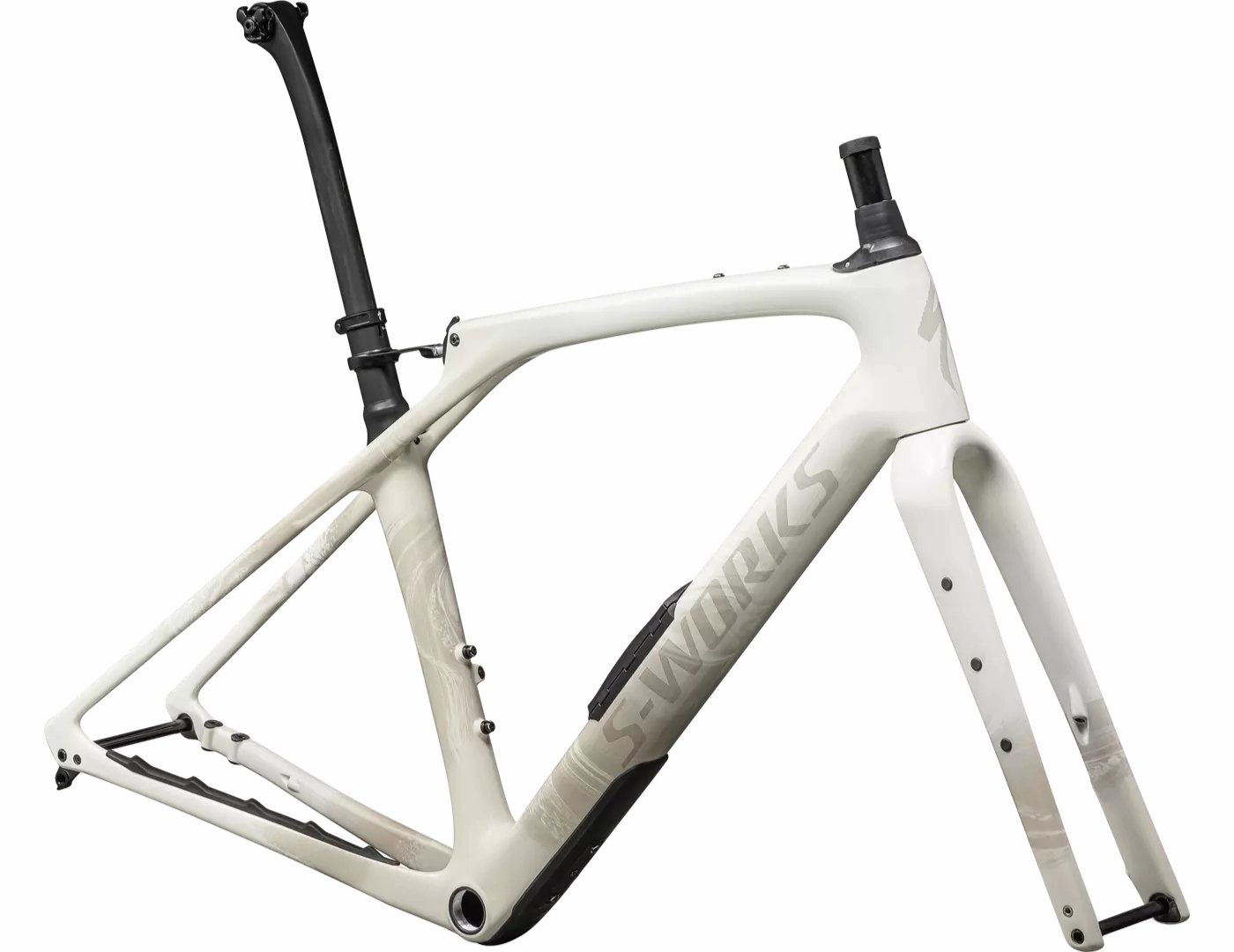

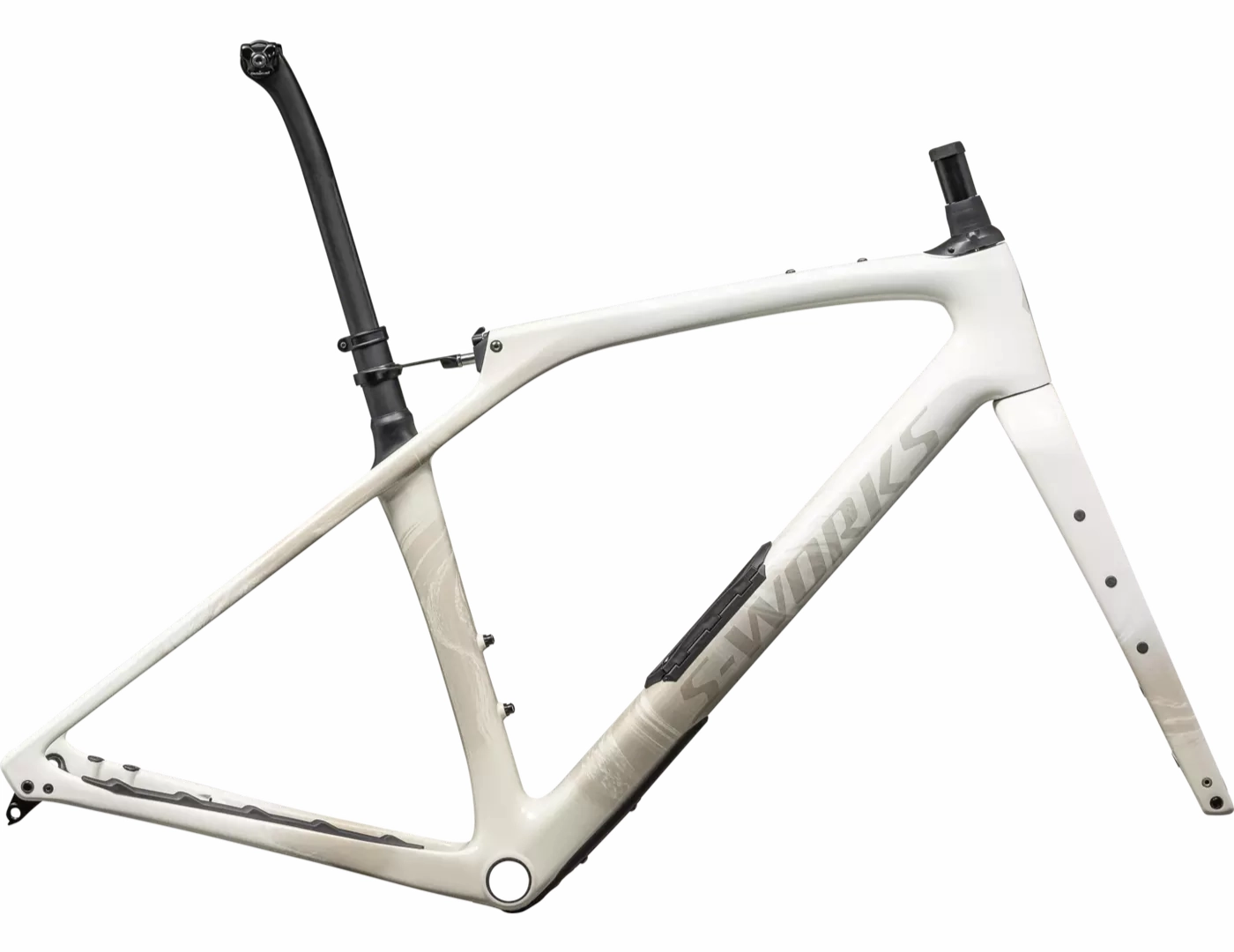

Name: S-Works Diverge STR Frameset 2024
SKU: 297420

Description

With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the riderinstead of the bikeFuture Shock technology increases control and efficiency while decreasing fatigue, so youll be riding farther and faster over chunkier terrain than you believed possible. And the Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems. The S-Works Diverge STR starts with our FACT 11r carbon frameset with front and rear Future Shock suspension.

The new Diverge doesnt just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate bobbing under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.
By suspending the rider with damped, tunable travel20mm front/30mm rearFuture Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. Youre efficient, youre comfortable, youre in control. Your bike is light, nimble, and responsive.
Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but its found its purest expression on gravel. Its 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and were feeling generous. 47mm on a 700c wheel and 2.1 on 650B. Diverge STR is the most capable gravel bike weve ever made, so its the most fun. We did the math.
The S-Works Diverge STR FACT 11r carbon frame is more compliant than any drop bar bike we have ever made yet adds just 100 grams compared to the S-Works Diverge frame. Never have so few grams added so much capability. Climb it, race it, or load it down with bags and gear for the long haulDiverge STR does it all faster and smoother without any excess baggage.

Specification

Frameset

Frame: Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc

Suspension

Fork: Future Shock 3.3 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount

Cockpit

SeatPost: S-Works Carbon Seat Post, 20mm Offset

Seat Binder: Specialized Alloy, 33.3mm

Accessories

SWAT: Integrated SWAT door, internal storage system

Product details

Product ID: 221360

Weight

Weight: 2.98kg (6 lb, 9.1 oz)

Weight Size: 56

Geometry

	49	52	54	56	58	61
Seatpost Length	350	350	350	350	350	350
Stack	569	576	593	609	633	659
Reach	365	374	383	392	401	410
Head Tube Length	100	100	115	130	155	182
Head Tube Angle	70	70.5	71.25	71.75	71.75	71.75
BB Height	270	265	265	265	265	265
BB Drop	80	85	85	85	85	85
Trail	69	66	61	57	57	57
Fork Length, Full	390	390	390	390	390	390
Fork Rake/Offset	55	55	55	55	55	55
Front Center	607	612	619	629	645	663
Chainstay Length	429	429	429	429	429	429
Wheelbase	1023	1027	1034	1044	1060	1078
Top Tube Length, Horizontal	527	540	556	570	586	602
Bike Standover Height	704	730	753	778	804	833
Seat Tube Length	390	430	470	500	530	560
Seat Tube Angle	74.5	74.25	74	74	74	74
