Description

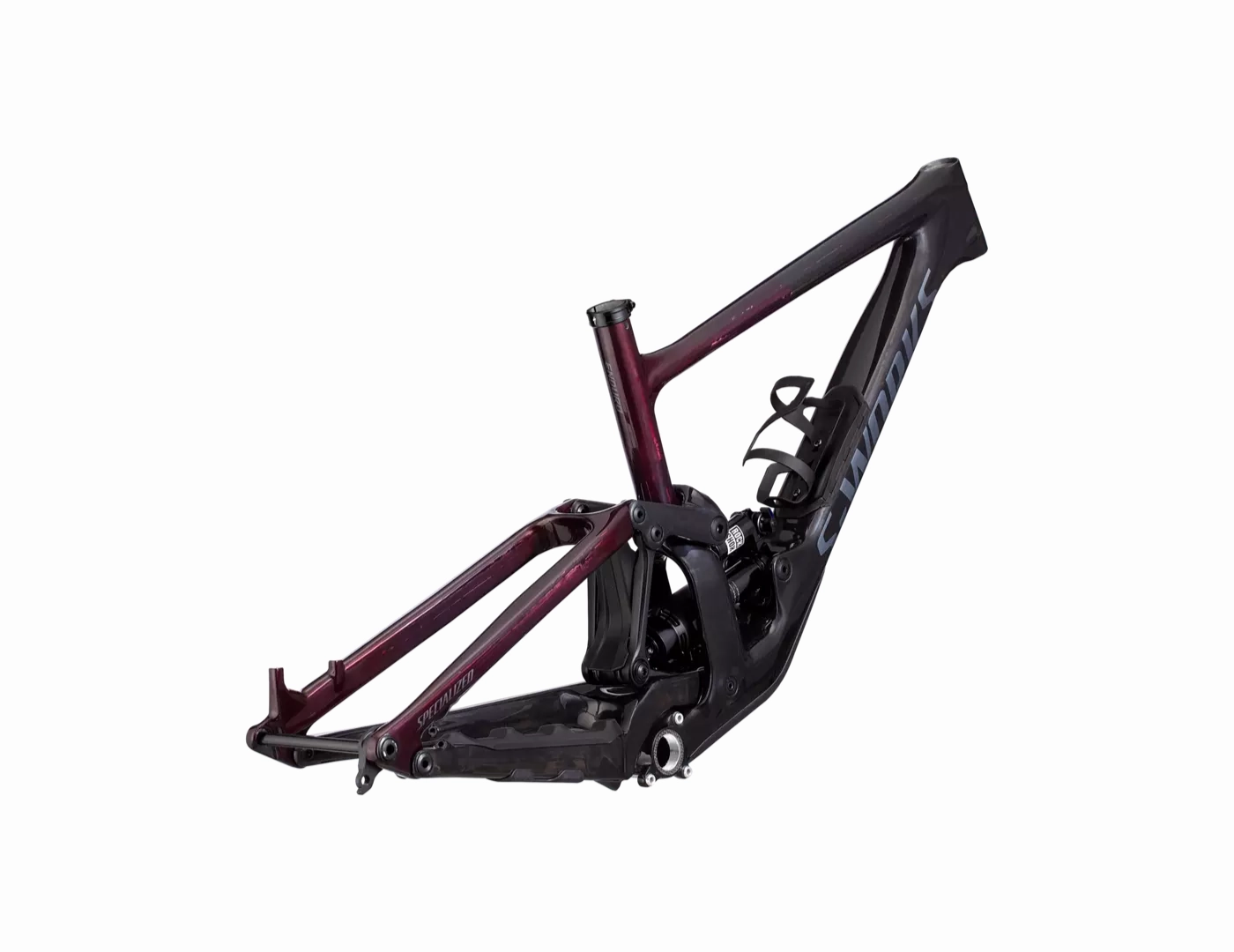

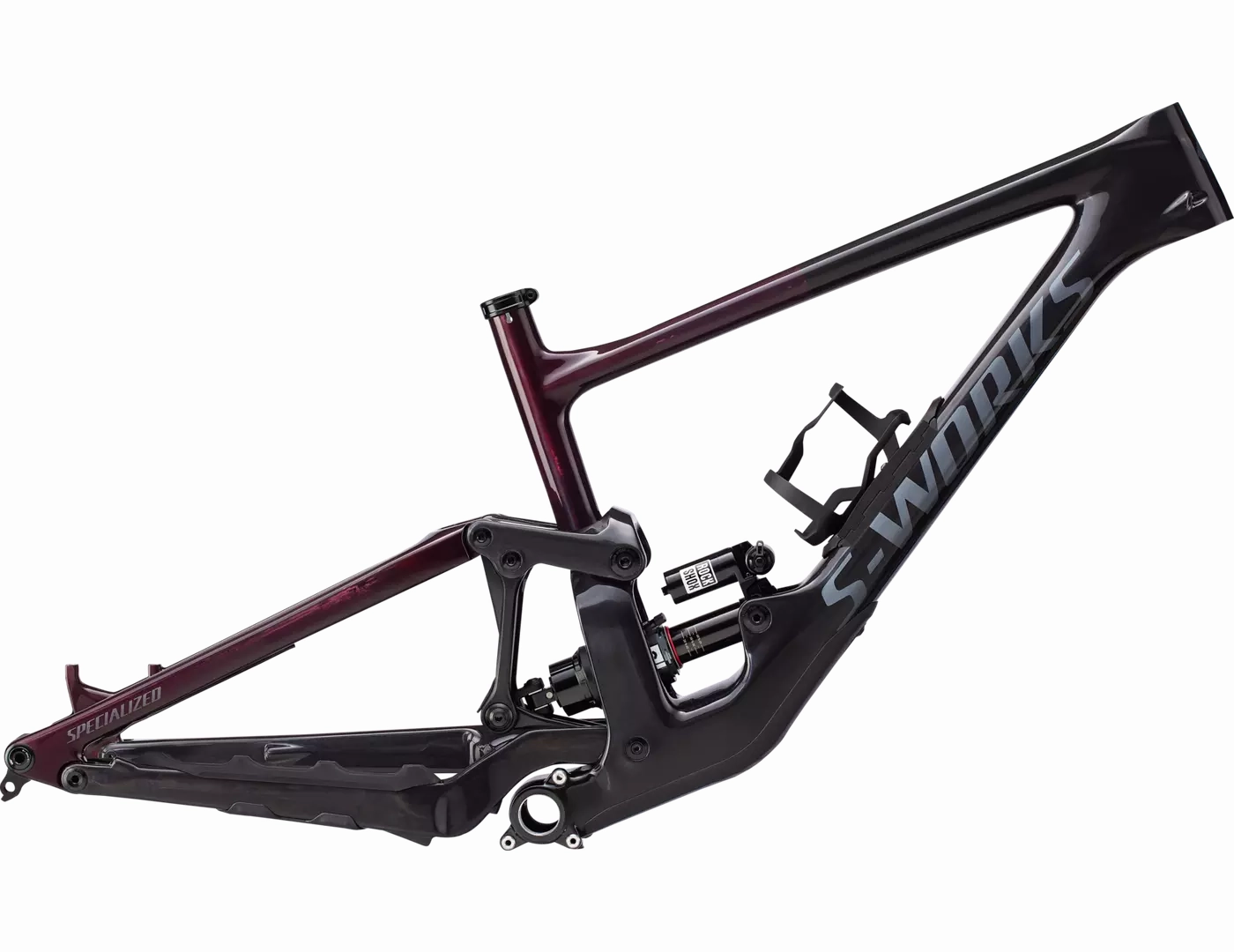

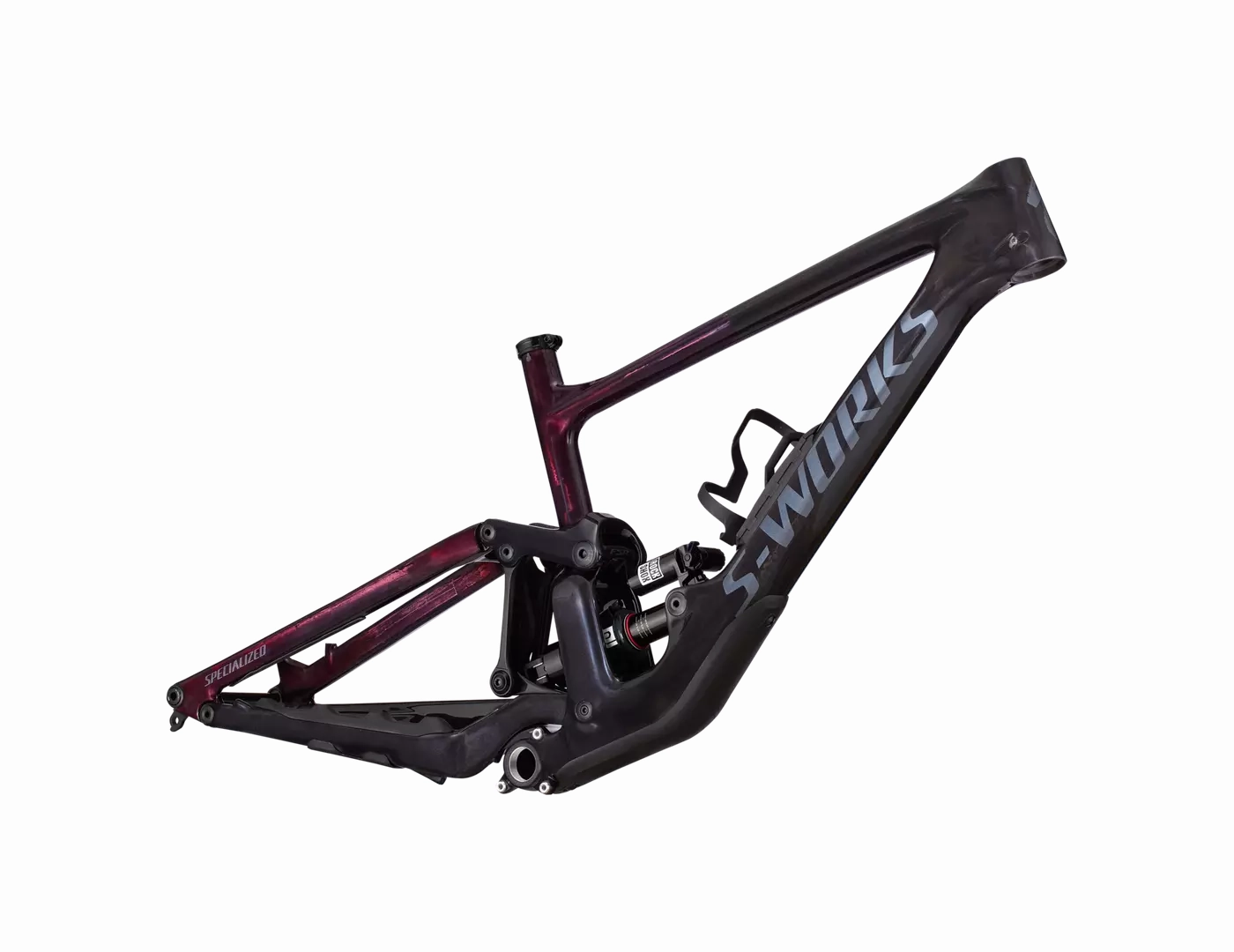

Start your build with the best. The FACT 11M carbon chassis of Enduro is decked out with carbon upper and lower links, internal cable routing, SWAT door integration, and top-tier RockShox suspensionmaking it the perfect base to build from. The frame includes SRAMs Universal Derailleur Hanger (UDH) for compatibility to accept direct mount derailleurs.
- INCREDIBLY CAPABLE: If the Enduro looks like its sibling, the Demo, its because they share plenty of downhill DNA. A more rearward axle path reduces wheel hang-up on big impacts. A low and forward-positioned shock keeps it planted and confident-feeling at high speeds. Balanced chassis stiffness helps the front end steer precisely and keeps the rear end tracking like its on rails. Add it all up, and you have a bike that laughs in the face of the steepest, rockiest trails.
- ASTONISHINGLY FASTUP AND DOWN THE TRAIL: Stomp on the pedals, and the new Enduro accelerates far quicker than you'd expect possible from a downhill bruiser. To start, we increased anti-squat, so the suspension better resists pedal bob. Then, to further its efficiency, we re-directed the angle of the chainstay and upper shock linkages for a much more efficient design. The end result? Less bobbing, more speed.
- FAST STARTS WITH FIT: Fast and fit aren't mutually exclusive, which is why the progressive geometry of the Enduro has been designed for going up and down. To start, seat tubes and stack heights dont grow massively between sizes, meaning you can now pick a frame size based on both your height and your riding style. Pair this new sizing style with a slacker head angle, longer reach, and steeper seat tube across the line, and youre left with a quicker and more capable steed, no matter the size.
- MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we've got you covered.
Specification
Frameset
- SWAT
- SWAT internal downtube storage
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m carbon chassis and rear-end, 29 S-Sizing Enduro Race Geometry, Carbon upper and lower links, SRAM Universal Derrailuer Hanger, SWAT Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, 170mm of travel
Suspension
- Rear Shock
- RockShox Vivid Ultimate, Ride Dynamics Trail Tune, adjustable hydraulic bottom out, adjustable rebound and high/low speed compression, 205x60, Trunnion
Product details
- Product ID
- 276009
Weight
- Weight
- 3.82kg (8 lb, 6.7 oz)
- Weight Size
- S4
Geometry
| Size | S2 | S3 | S4 | S5 |
|---|---|---|---|---|
| Stack (low BB) | 616 | 620 | 629 | 638 |
| Reach (low BB) | 437 | 464 | 487 | 511 |
| Head-Tube Length | 95 | 100 | 110 | 120 |
| Head-Tube Angle (low BB) | 63.9 | 63.9 | 63.9 | 63.9 |
| Head-Tube Angle | 64.3 | 64.3 | 64.3 | 64.3 |
| B-B Height (low BB) | 347 | 347 | 347 | 347 |
| B-B Height | 354 | 354 | 354 | 354 |
| B-B Drop (low BB) | 28 | 28 | 28 | 28 |
| B-B Drop | 21 | 21 | 21 | 21 |
| Trail (low BB) | 132 | 132 | 132 | 132 |
| Fork Length (full) | 581 | 581 | 581 | 581 |
| Fork Rake/Offset | 46 | 46 | 46 | 46 |
| Front-Center (low BB) | 777 | 806 | 833 | 862 |
| Chain-Stay Length | 442 | 442 | 442 | 442 |
| Wheelbase | 1217 | 1246 | 1274 | 1302 |
| Seat-Tube Length | 400 | 420 | 440 | 465 |
| Seat-Tube Angle | 76 | 76 | 76 | 76 |
| Top Tube Length (Horizontal) | 591 | 619 | 644 | 670 |
