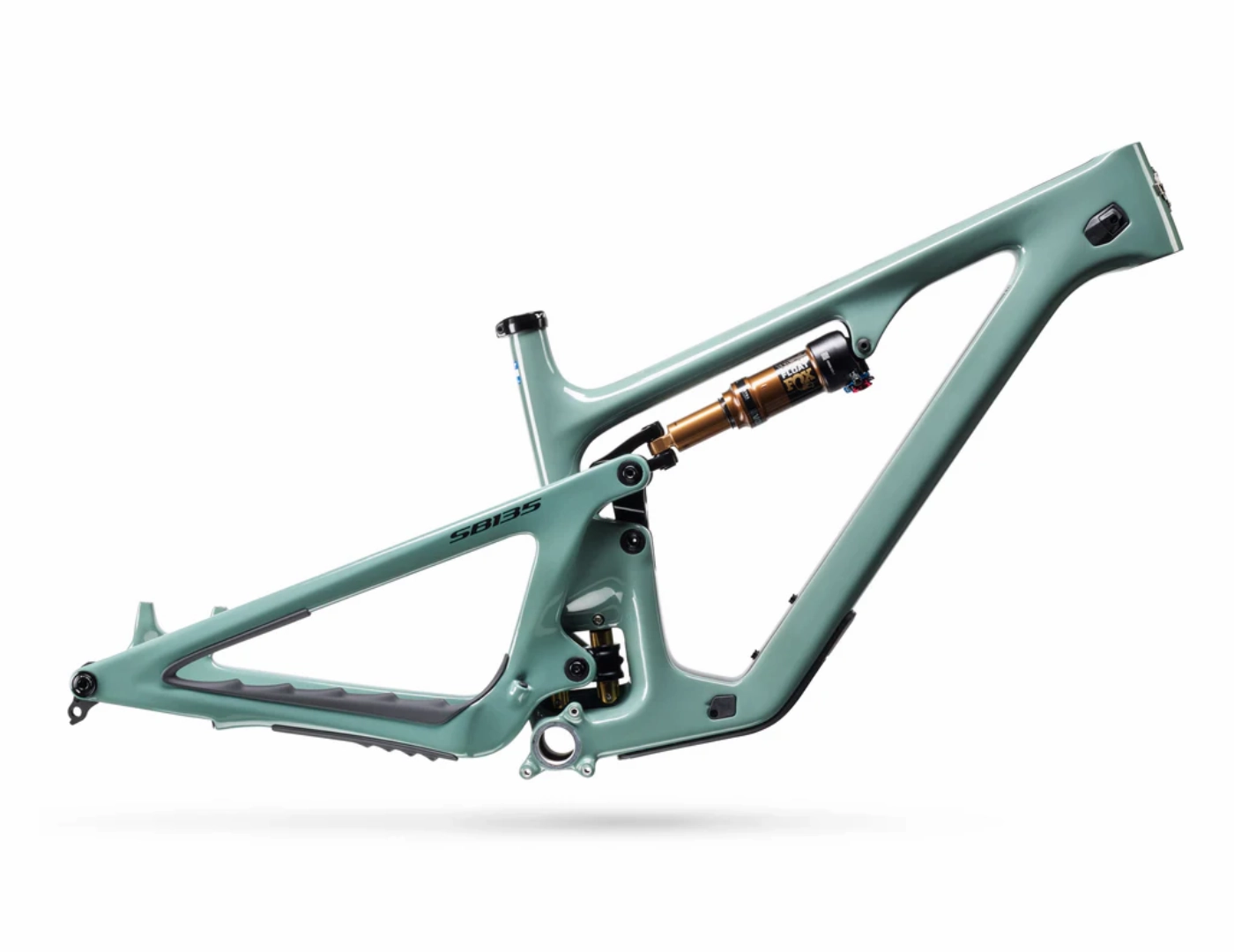

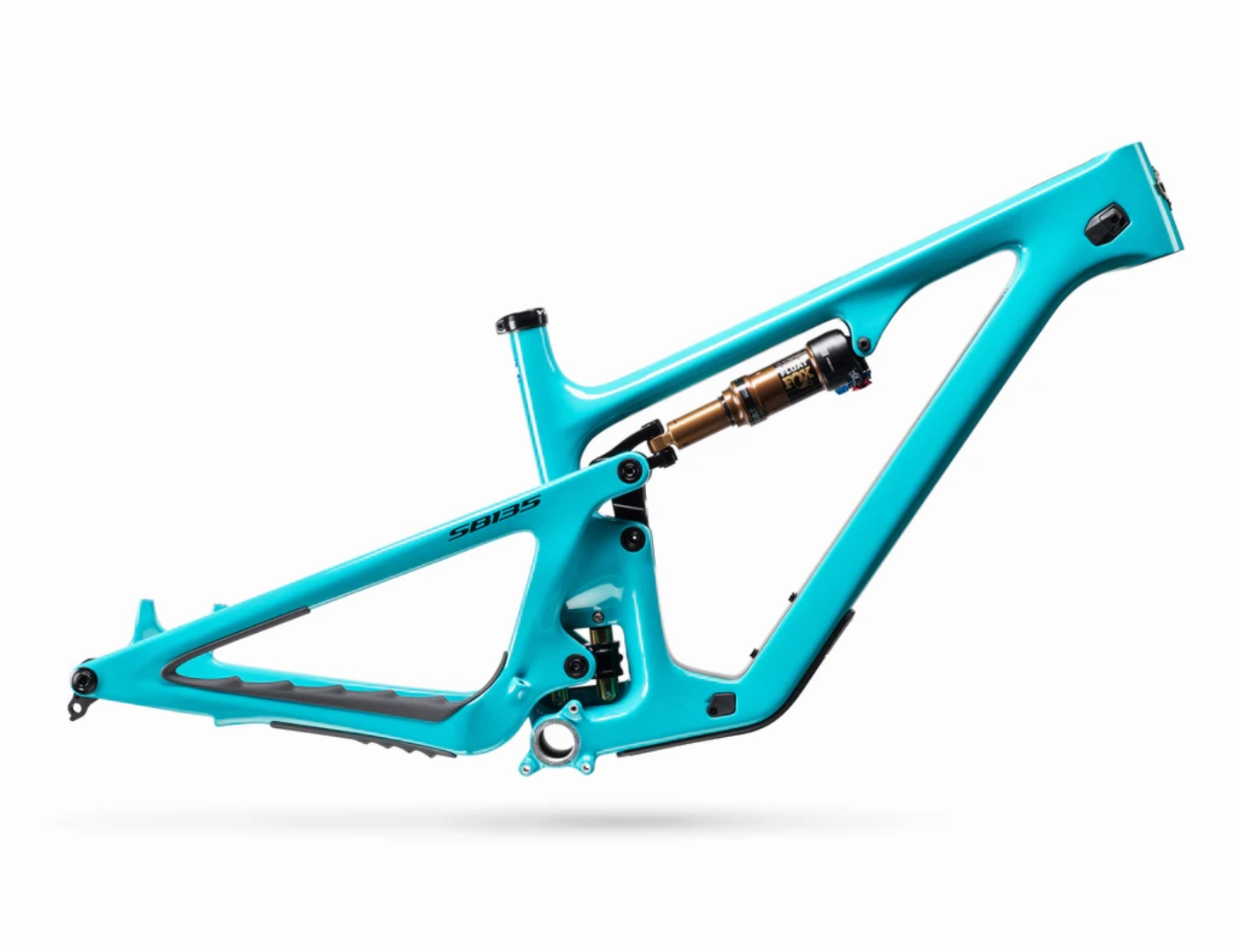

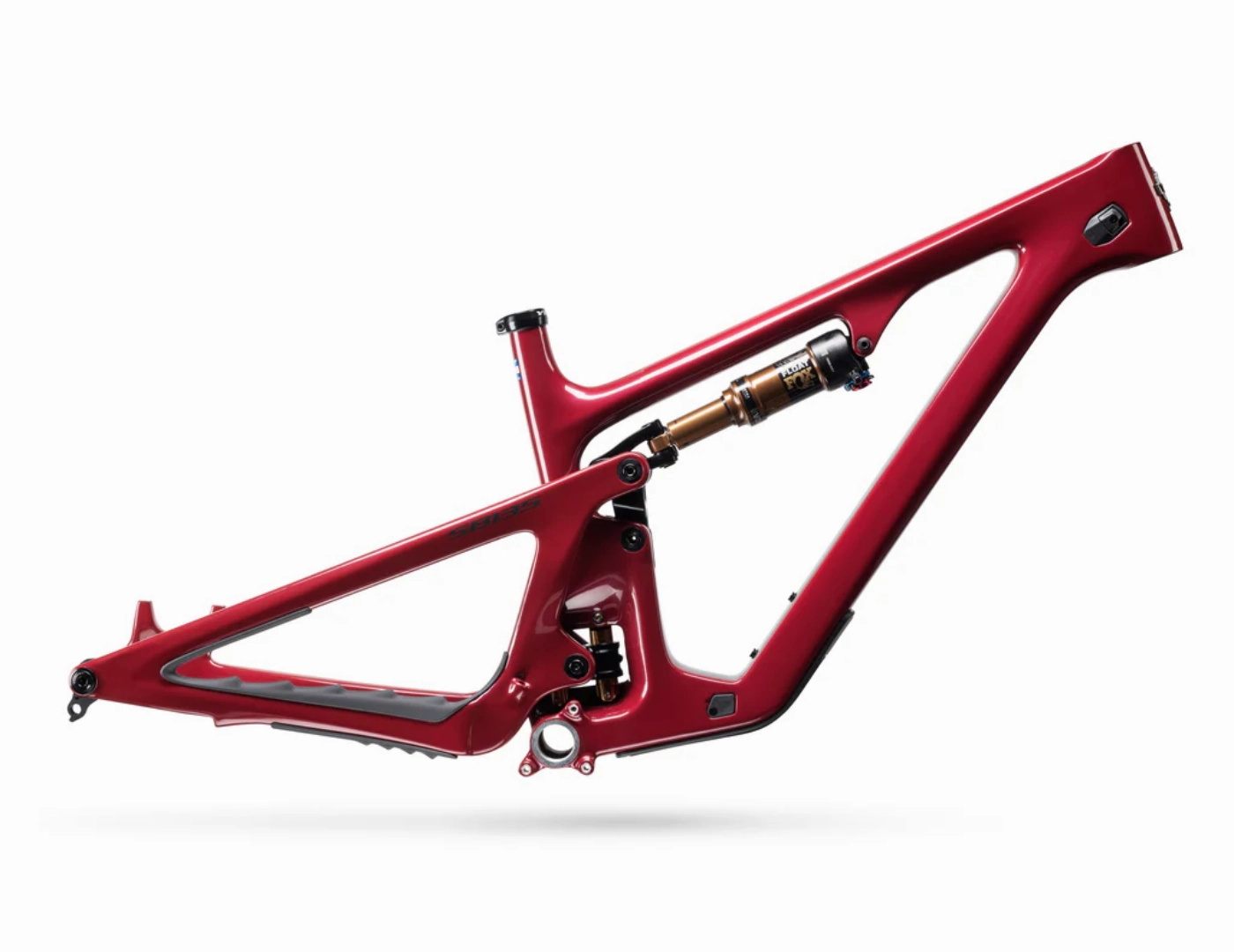

Description
Begging for your input, chomping to respond. flick it, pedal it, pump it to the moon. a stoke-making mutation of fun-focused DNA, blinding proof that less can be a whole lot more. Come out to play. You bet your ass the SB135 is still down.
Specification
TRAVEL 135MM (5.3")
MATERIAL TURQ SERIES
SHOCK FOX FACTORY FLOAT
Geometry
| XS | SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 13.6 | 14.4 | 15.7 | 17.3 | 18.5 |
| B | TOPTUBE LENGTH | 21 | 22.3 | 23.5 | 24.4 | 25.5 |
| C | HEADTUBE ANGLE | 65.5 | 65.4 | 65.4 | 65.4 | 65.4 |
| D | EFF. SEAT TUBE ANGLE | 77 | 77 | 77 | 77 | 76.9 |
| E | ACTUAL SEAT TUBE ANGLE | 72.1 | 72.4 | 72 | 72.1 | 72.3 |
| F | CHAINSTAY LENGTH | 16.9 | 17 | 17 | 17.1 | 17.2 |
| G | WHEELBASE | 44.9 | 45.8 | 47.2 | 48.2 | 49.5 |
| H | ESTIMATED BB HEIGHT | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 |
| I | STANDOVER | 26.6 | 26.7 | 28.1 | 28.2 | 28.4 |
| J | HEADTUBE LENGTH | 3.6 | 4.0 | 4.2 | 4.6 | 5.1 |
| K | AXLE TO CROWN | 21.6 | 21.6 | 21.6 | 21.6 | 21.6 |
| L | OFFSET | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| M | STACK | 23.0 | 23.3 | 23.5 | 23.9 | 24.3 |
| N | REACH | 15.7 | 16.9 | 18.1 | 18.9 | 19.9 |
| O | FRONT CENTER | 27.5 | 28.9 | 30.1 | 31.1 | 32.3 |
| P | Vertical Fork Travel | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 |
