Description
Begging for your input, chomping to respond. flick it, pedal it, pump it to the moon. a stoke-making mutation of fun-focused DNA, blinding proof that less can be a whole lot more. Come out to play. You bet your ass the SB135 is still down.

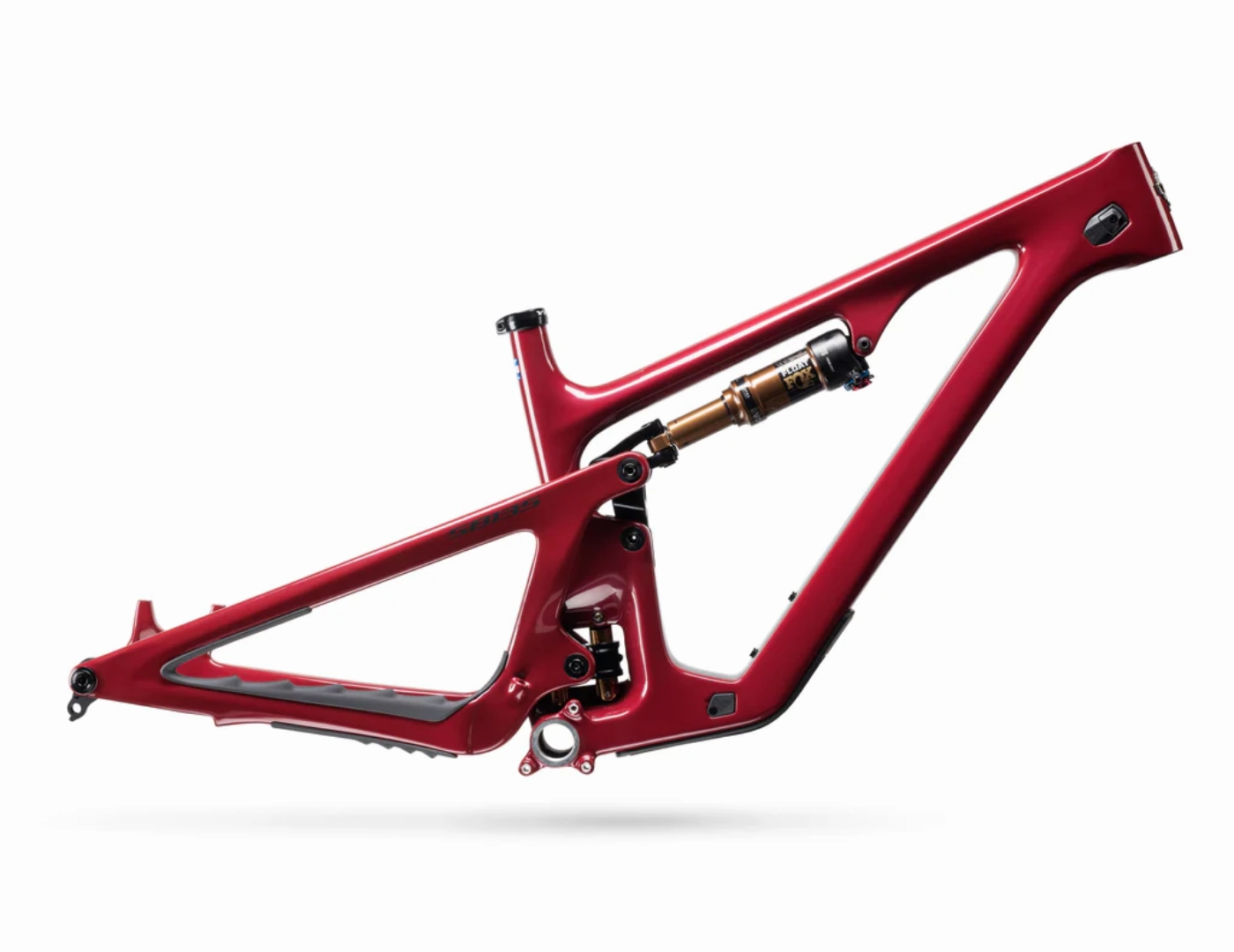

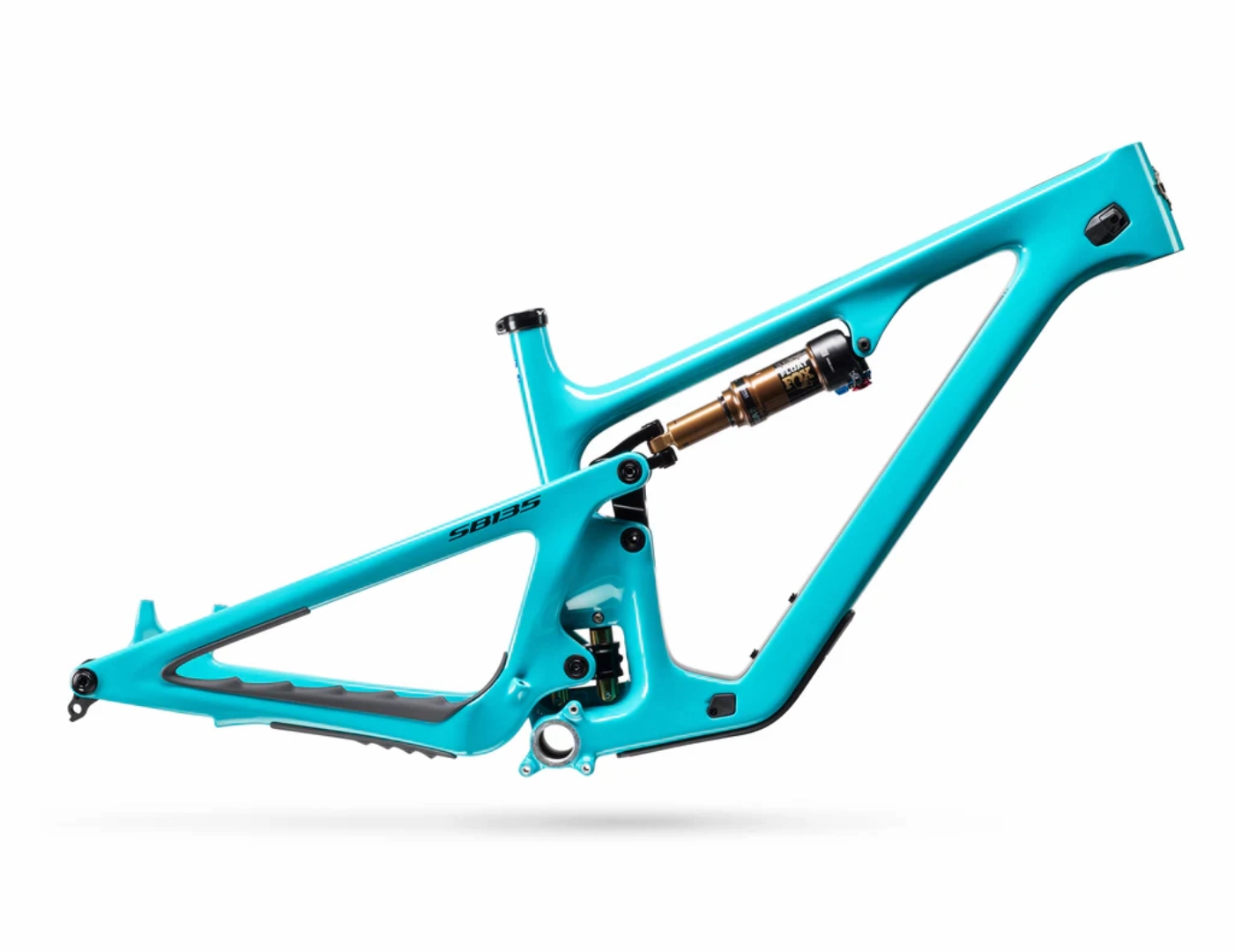

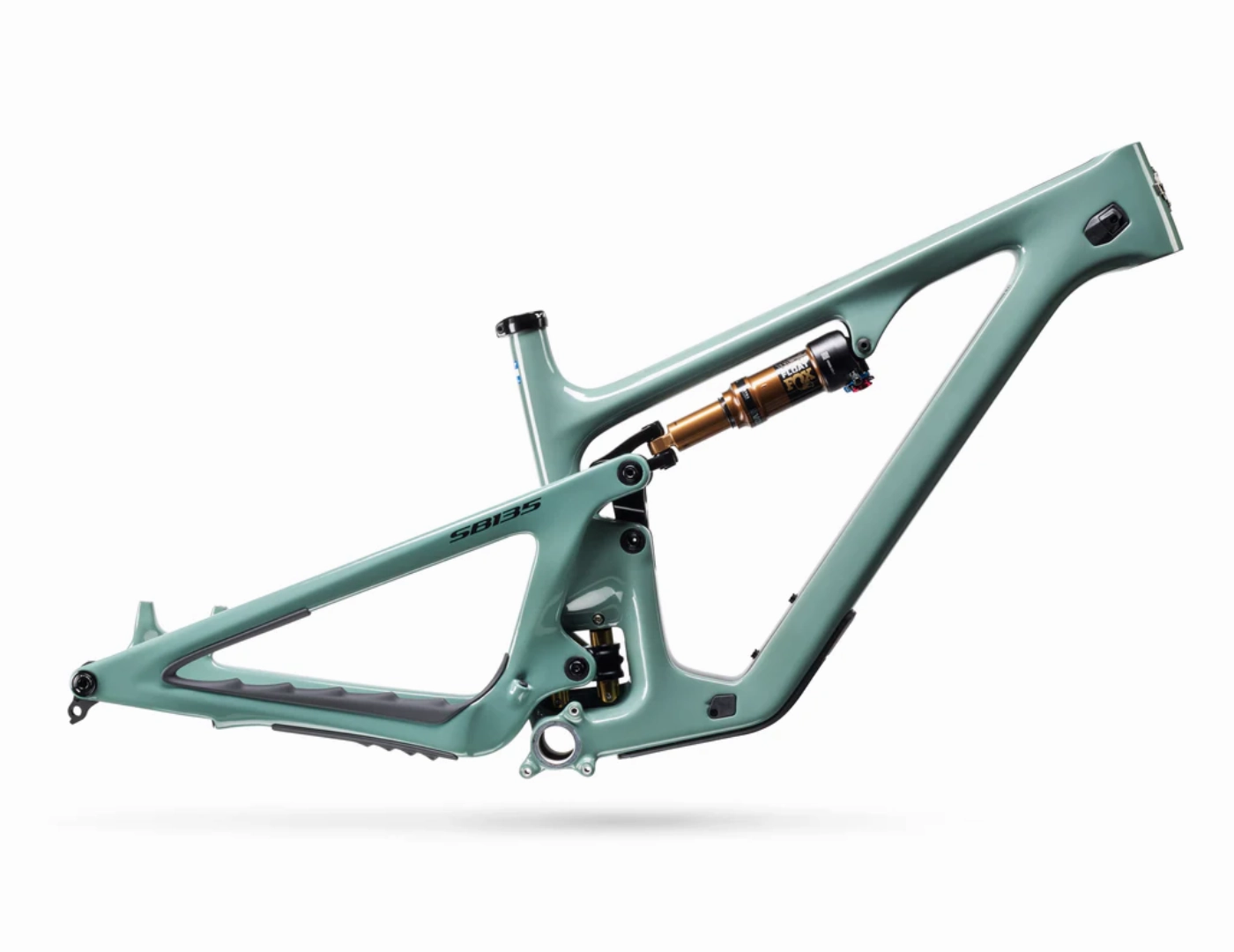

Specification
TRAVEL 135MM (5.3")
MATERIAL TURQ SERIES
SHOCK FOX FACTORY FLOAT X
(IMAGE SHOWS FLOAT BUT THIS OFFER COMES WITH FLOAT X)
Geometry
| MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 15.7 | 17.3 | 18.5 |
| B | EFFECTIVE TOPTUBE LENGTH | 23.6 | 24.5 | 25.5 |
| C | HEADTUBE ANGLE | 65 | 65 | 65 |
| D | EFF. SEAT TUBE ANGLE | 76.5 | 76.5 | 76.4 |
| E | ACTUAL SEAT TUBE ANGLE | 71.6 | 71.6 | 71.9 |
| F | CHAINSTAY LENGTH | 17.0 | 17.1 | 17.2 |
| G | WHEELBASE | 47.4 | 48.3 | 49.6 |
| H | ESTIMATED BB HEIGHT | 13.4 | 13.4 | 13.4 |
| I | STANDOVER | 28.3 | 28.4 | 28.6 |
| J | HEADTUBE LENGTH | 4.2 | 4.6 | 5.1 |
| K | FORK AXLE TO CROWN | 22.0 | 22.0 | 22.0 |
| L | FORK OFFSET | 1.5 | 1.5 | 1.5 |
| M | STACK | 23.6 | 24.0 | 24.4 |
| N | REACH | 17.9 | 18.7 | 19.7 |
| O | FRONT CENTER | 30.3 | 31.3 | 32.4 |
| P | Vertical Fork Travel | 5.7 | 5.7 | 5.7 |
