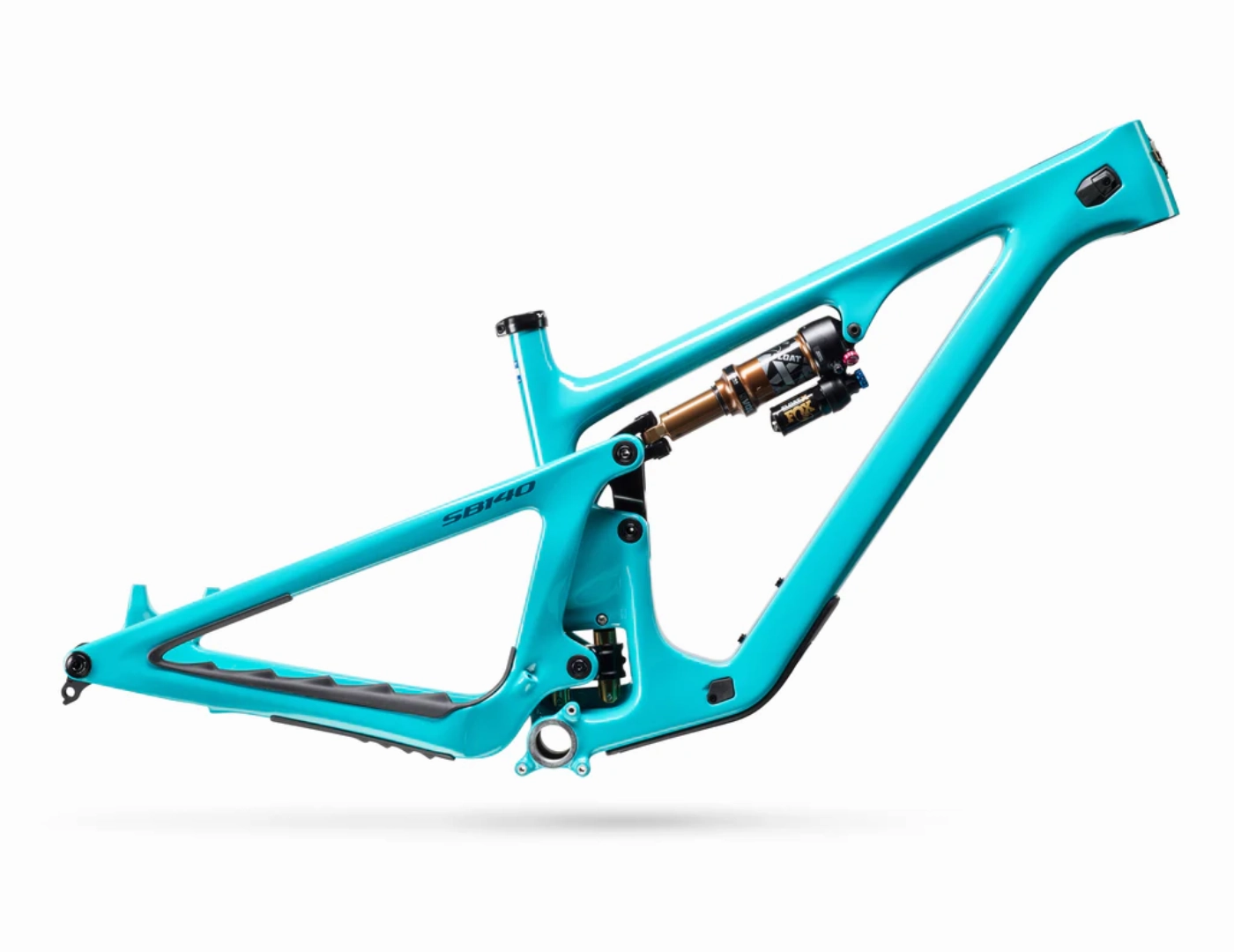

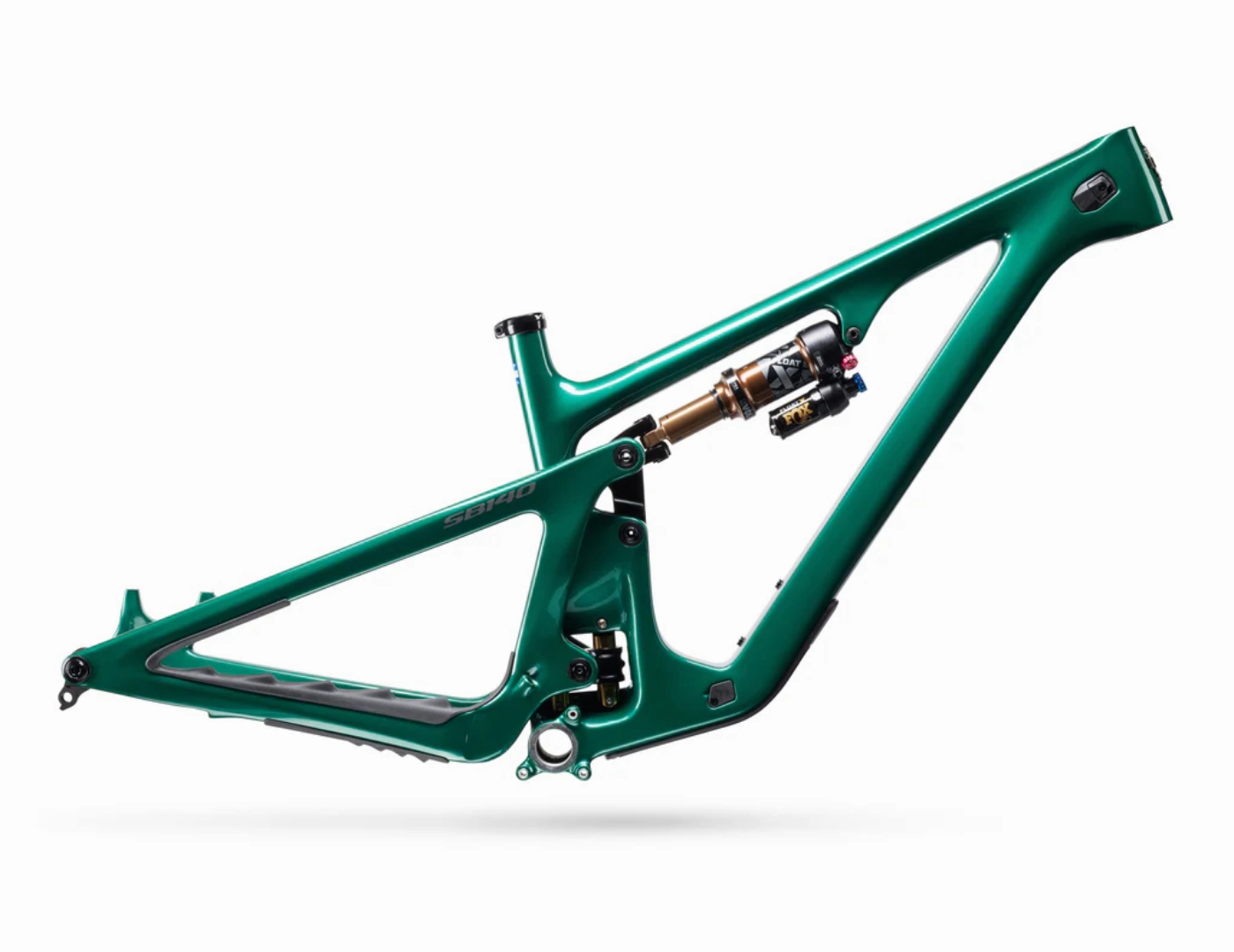

Description
Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rain and the air. The unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.
This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. "Trail bike" is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what's on the other side.
Specification
TRAVEL 140MM (5.5")
MATERIAL TURQ SERIES
SHOCK FOX FACTORY FLOAT X
FORK FOX FACTORY 36 GRIP X2/160MM
Geometry
| XS | SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 14.4 | 15.7 | 17.3 | 18.5 | 19.1 |
| B | EFFECTIVE TOPTUBE LENGTH | 22.5 | 23.7 | 24.6 | 25.7 | 26.4 |
| C | HEADTUBE ANGLE | 65 | 65 | 65 | 65 | 65 |
| D | EFF. SEAT TUBE ANGLE | 77 | 77 | 77 | 77 | 77 |
| E | ACTUAL SEAT TUBE ANGLE | 71.8 | 72.2 | 72.4 | 72.8 | 73.3 |
| F | CHAINSTAY LENGTH | 17.2 | 17.2 | 17.3 | 17.4 | 17.5 |
| G | WHEELBASE | 46.8 | 48.1 | 49 | 50.3 | 51.3 |
| H | ESTIMATED BB HEIGHT | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| I | STANDOVER | 28.6 | 28.8 | 29.0 | 29.1 | 29.3 |
| J | HEADTUBE LENGTH | 3.6 | 3.7 | 4.0 | 4.4 | 5.3 |
| K | FORK AXLE TO CROWN | 22.6 | 22.6 | 22.6 | 22.6 | 22.6 |
| L | FORK OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 24.3 | 24.4 | 24.6 | 25.7 | 26.4 |
| N | REACH | 16.9 | 18.1 | 18.9 | 19.9 | 20.5 |
| O | FRONT CENTER | 29.6 | 30.8 | 31.7 | 32.9 | 33.8 |
| P | Vertical Fork Travel | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 |
Size
| SM | 5'1" - 5'7" |
| MD | 5'5 - 5'11" |
| LG | 5'10" - 6'3" |
| XL | 6'1 - 6'7" |
| 2XL | 6'5 - 6'11" |
