Description
We said it already knows. And now it knows better. Proven worthy time and again at rampage, reconfigured to fit the bill as zero-hesitation go-to for whatever your pleasure. Un-rack it all for the park laps, pedal it on character-building epics, push it up spooky steep darksides "nobody" knows about, whatever the question, unhard your decisions.
You ask. It gives.
Specification
| Details | TURQSeries Carbon Frame, Fox Factory DHX2 |

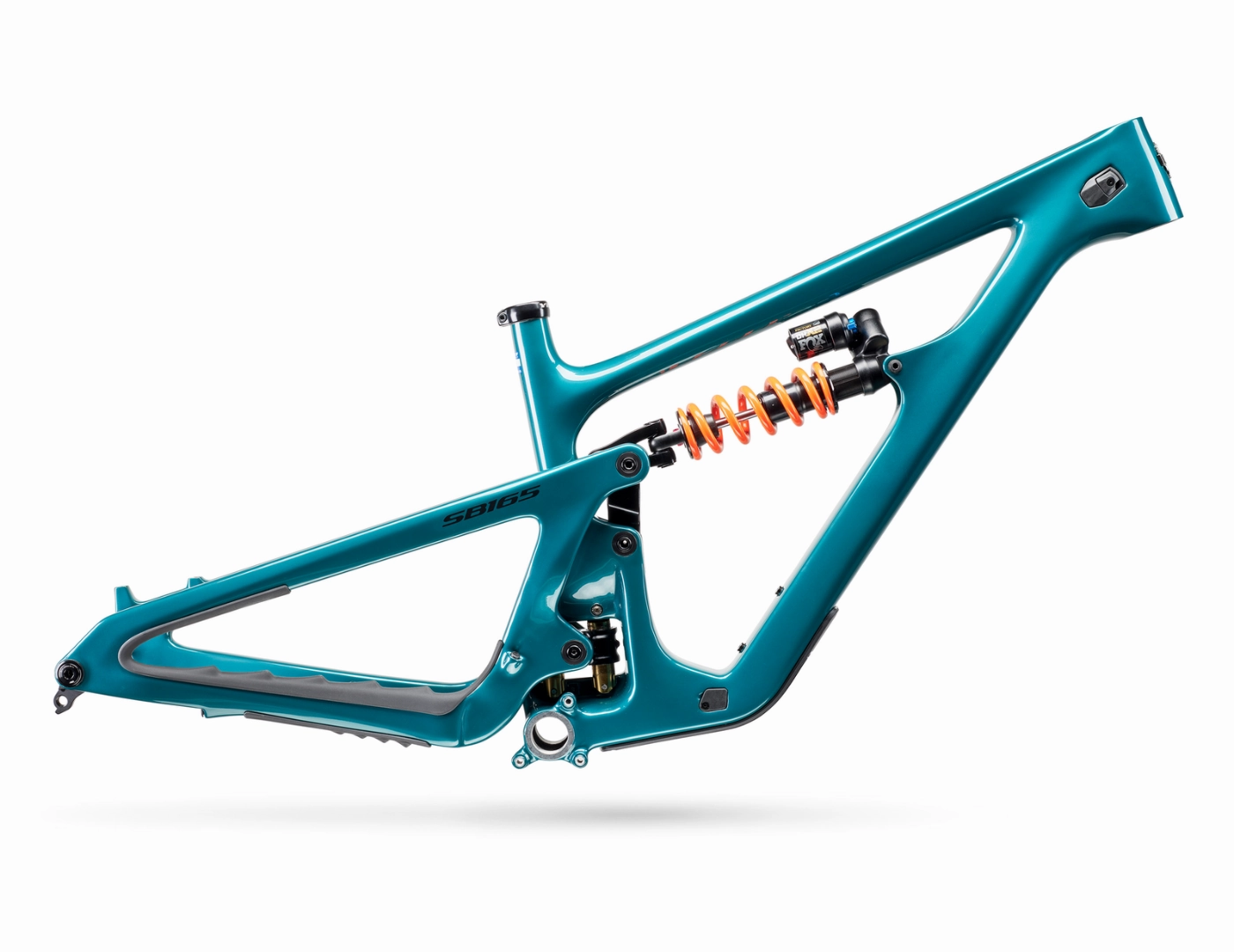

| Frame | TURQSeries carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, universal derailleur hanger (UDH) and axle. |
| Fork | FOX FACTORY 38 GRIP2 170 |
| Material | TURQSERIES |
| Weight | 8.31 |
| Travel | 165MM (6.5") |
| Rear Shock | FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550# |
Geometry
| SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 14.4 | 15.7 | 17.3 | 18.5 |
| B | EFFECTIVE TOPTUBE LENGTH | 22.6 | 23.8 | 24.6 | 25.7 |
| C | HEADTUBE ANGLE | 63.5 | 63.5 | 63.5 | 63.5 |
| D | EFF. SEAT TUBE ANGLE | 76.8 | 76.9 | 76.9 | 76.9 |
| E | ACTUAL SEAT TUBE ANGLE | 71.5 | 72.0 | 72.1 | 72.6 |
| F | CHAINSTAY LENGTH | 17.0 | 17.1 | 17.2 | 17.3 |
| G | WHEELBASE | 47.5 | 48.9 | 49.8 | 51.1 |
| H | ESTIMATED BB HEIGHT | 13.6 | 13.6 | 13.6 | 13.6 |
| I | STANDOVER | 28.7 | 29.1 | 29.3 | 29.5 |
| J | HEADTUBE LENGTH | 3.7 | 4.0 | 4.2 | 4.6 |
| K | FORK AXLE TO CROWN | 23.1 | 23.1 | 23.1 | 23.1 |
| L | FORK OFFSET | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 24.4 | 24.6 | 24.8 | 25.2 |
| N | REACH | 16.9 | 18.1 | 18.9 | 19.9 |
| O | FRONT CENTER | 30.5 | 31.8 | 32.6 | 33.8 |
| P | VERTICAL FORK TRAVEL | 6.0 | 6.0 | 6.0 | 6.0 |
