Description

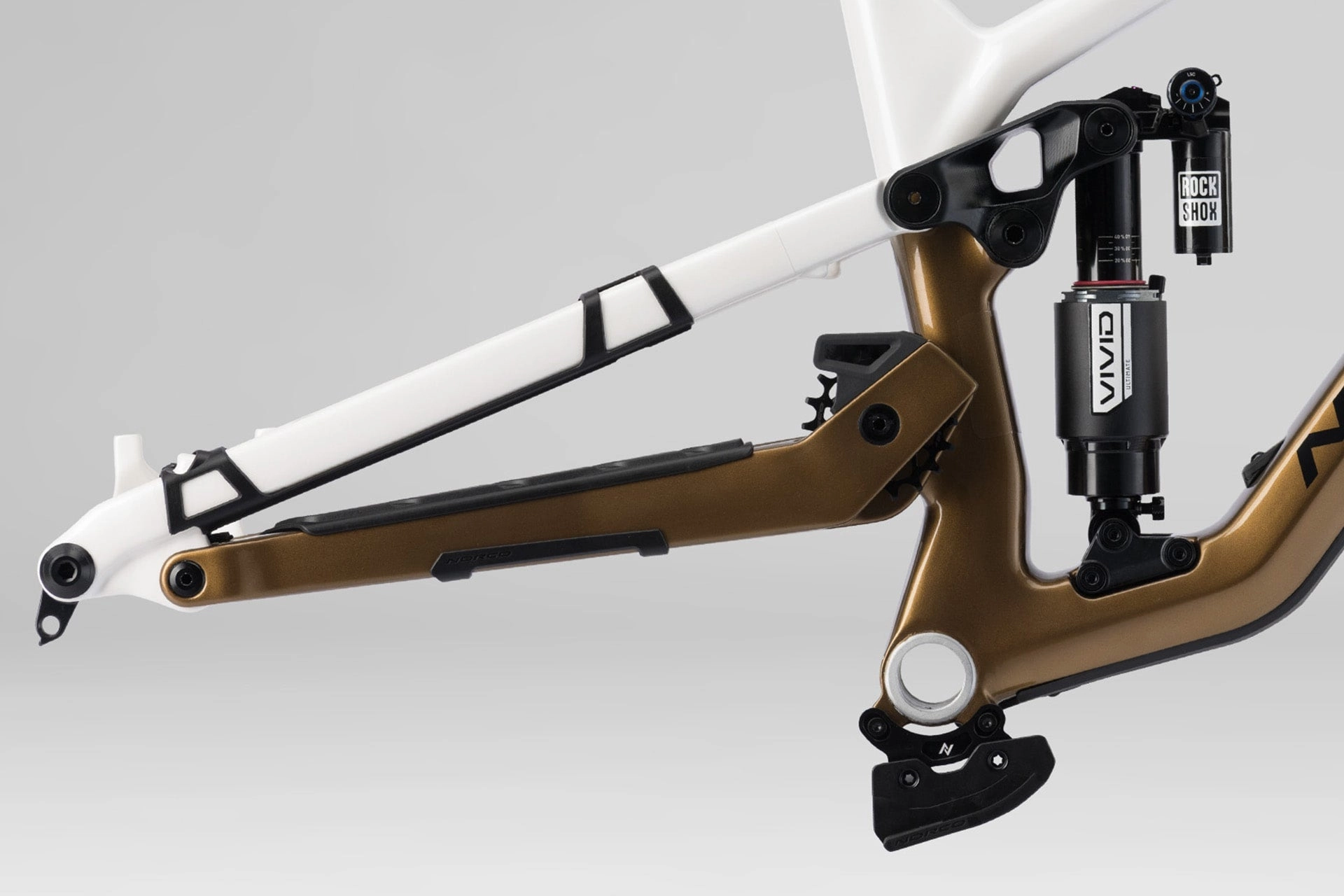

Whether youre carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHPsuspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.
Specification

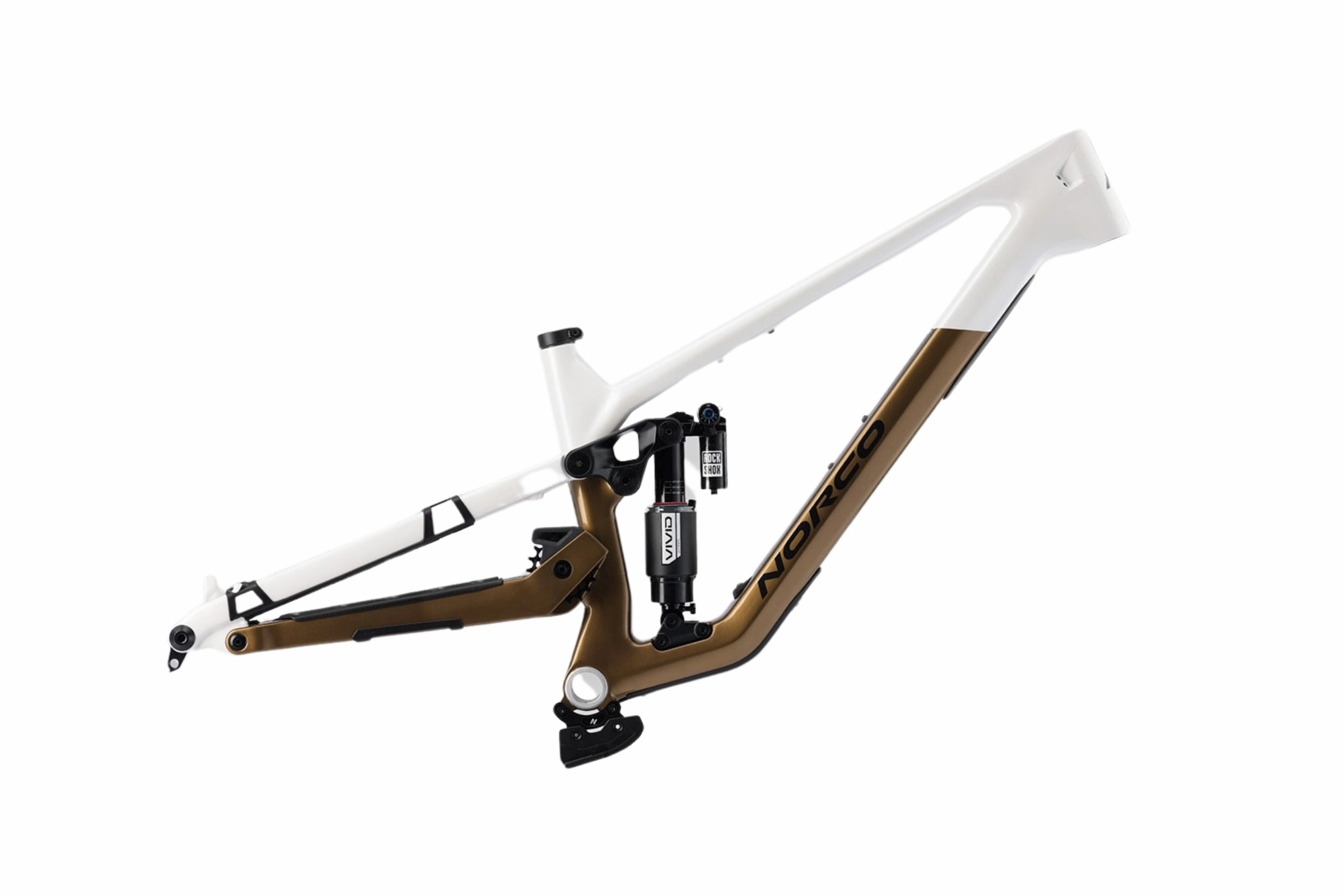

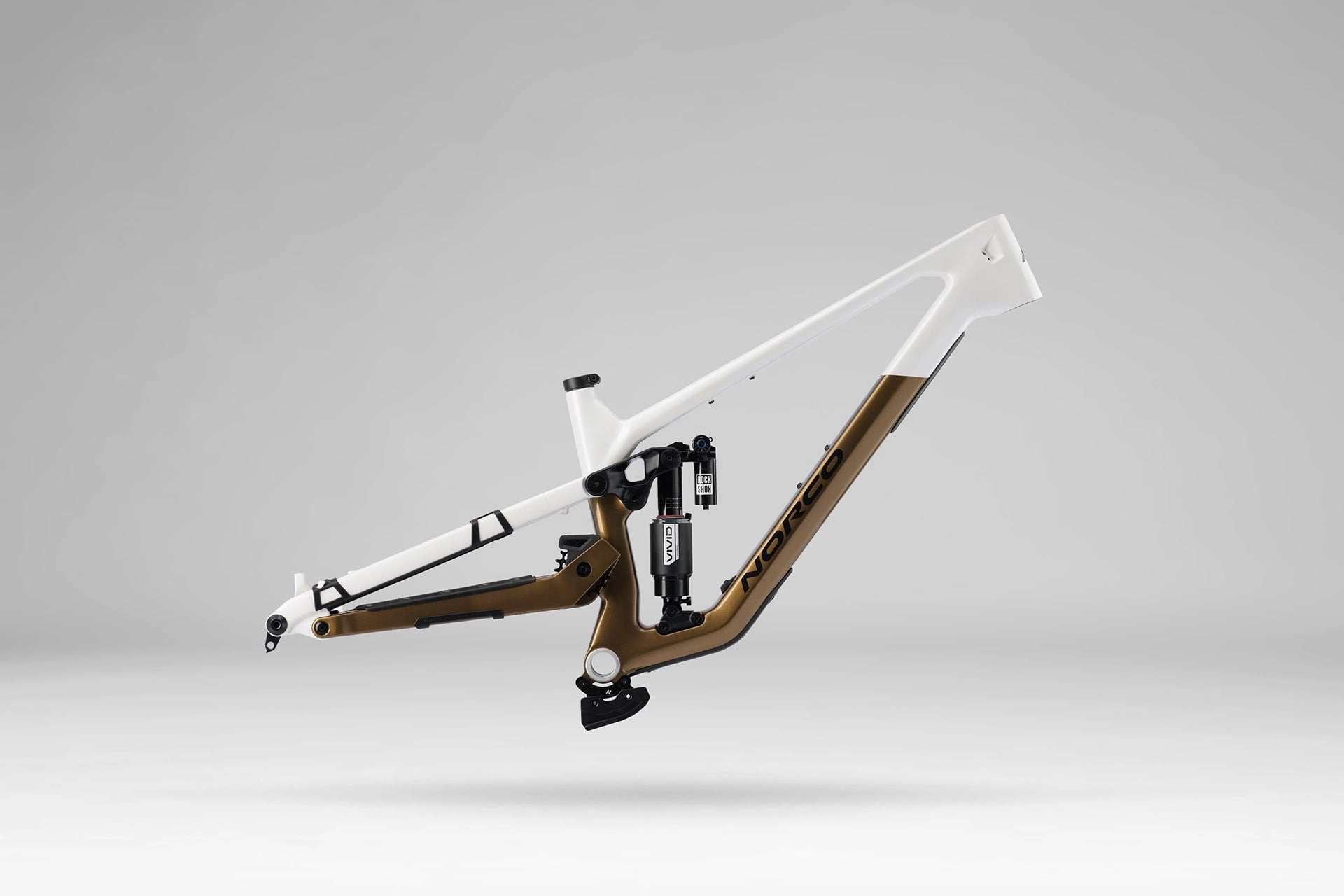

| FRAME | Sight Carbon, VPSHP, 150mm Travel, UDH Compatible |
| REAR SHOCK | Rockshox Vivid Ultimate Air, 205x60mm Trunnion |
| CHAIN TENSIONER | Norco Idler Guide and Lower Guide |
| SEATPOST CLAMP | Norco Alloy Nutted Clamp |
Geometry
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29" | 29" | 29" | 29" | 29" | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Travel (mm front/mm rear) | 160/150 | ||||||||||
| Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
| Stack | 618 | 627 | 636 | 645 | 654 | 618 | 627 | 636 | 645 | 654 | |
| HTA | Head Tube Angle | 64.0 | 64 | ||||||||
| OS | Fork Offset | 44 | |||||||||
| ST | Seat Tube Length | 350 | 370 | 385 | 430 | 445 | 350 | 370 | 385 | 430 | 445 |
| STA | Effective Seat Tube Angle | 77.00 | 77.25 | 77.50 | 77.75 | 78.00 | 77 | 77.25 | 77.5 | 77.75 | 78 |
| RC | Rear Centre Length | 420 | 424 | 428 | 432 | 436 | 426 | 430 | 434 | 438 | 442 |
| BB | Bottom Bracket Drop | 25/4 | 25/25 | ||||||||
| BBH | Bottom Bracket Height | 353 | |||||||||
| HTT | Horizontal Top Tube | 565 | 589 | 613 | 637 | 661 | 565 | 589 | 613 | 637 | 661 |
| WB | Wheelbase | 1181 | 1214 | 1247 | 1281 | 1314 | 1186 | 1219 | 1253 | 1286 | 1319 |
| SOH | Standover | 673 | 679 | 685 | 708 | 720 | 673 | 679 | 685 | 708 | 720 |
| HT | Head Tube Length | 105 | 115 | 125 | 135 | 145 | 105 | 115 | 125 | 135 | 145 |
| Trail | 135 | ||||||||||
| Recommended Seatpost Drop | 150 | 170 | 200 | 230 | 150 | 170 | 200 | 230 | |||
| Maximum Post Insertion | 250 | 270 | 300 | 330 | 250 | 270 | 300 | 330 | |||
| Stem Length | 40 | ||||||||||
| Crank Length | 170 | ||||||||||
| Tire Size | 2.35" 2.6" | ||||||||||
| Water Bottle Compatible | 1 x 750 mL | ||||||||||
