Description

Built to blast. Built to last.

Stack up the shuttle laps, head to the race track, or send it in the bike park on the new TR11.

The TR11's DNA has a healthy strain of big freeride hits, DH speed and bike park inspiration. It will help you tick off all of your gravity fed dreams with the confidence of a 29" wheel up front while not giving up the flickability on jumps or in tight corners with a 27.5" wheel out back. The bike was designed to let you party on the trails rather than worry about the small details. The new TR11 frame is aluminum, so throw it in the truck or blast through a rock garden without hesitation. It has shown its capability and versatility on the biggest lines in Alaska, Red Bull Rampage, the UCI World Cup DH series, Whistler bike park and pretty much everything in between. The all new TR11 should appeal to anyone looking for a 200mm Dual Crown experience.

The rebirthed TR11 won't pigeonhole you into one discipline, so you can revel in the world of gravity fed adventures.

Specification

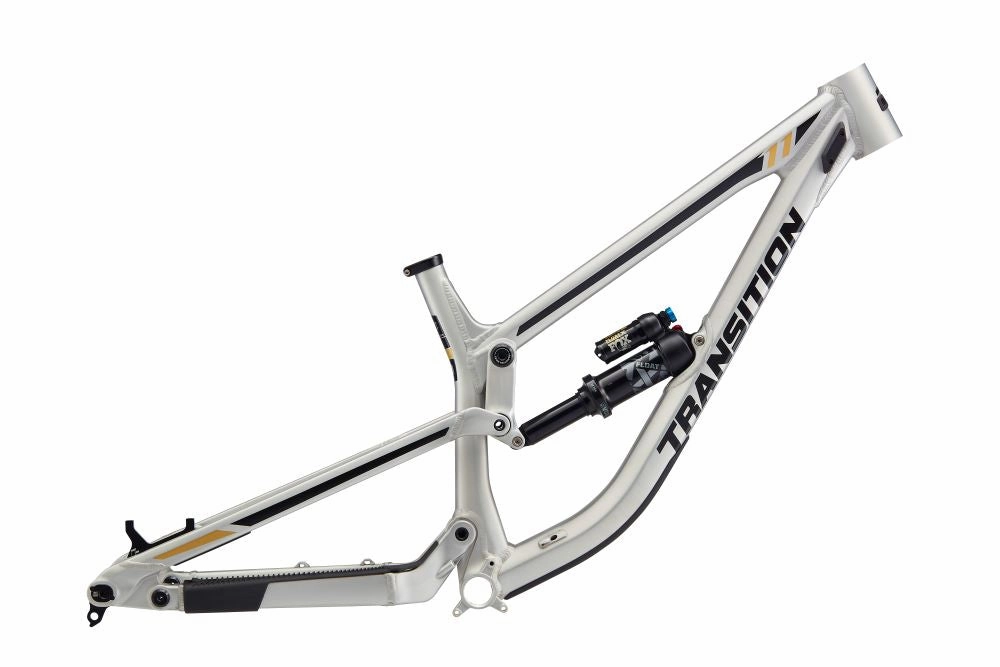

Frame Spec

Rear Travel - 200mm

Front Travel - 203mm

Wheel Size -29" Front, 27.5" Rear

Sizes - SM, MD, LG, XL

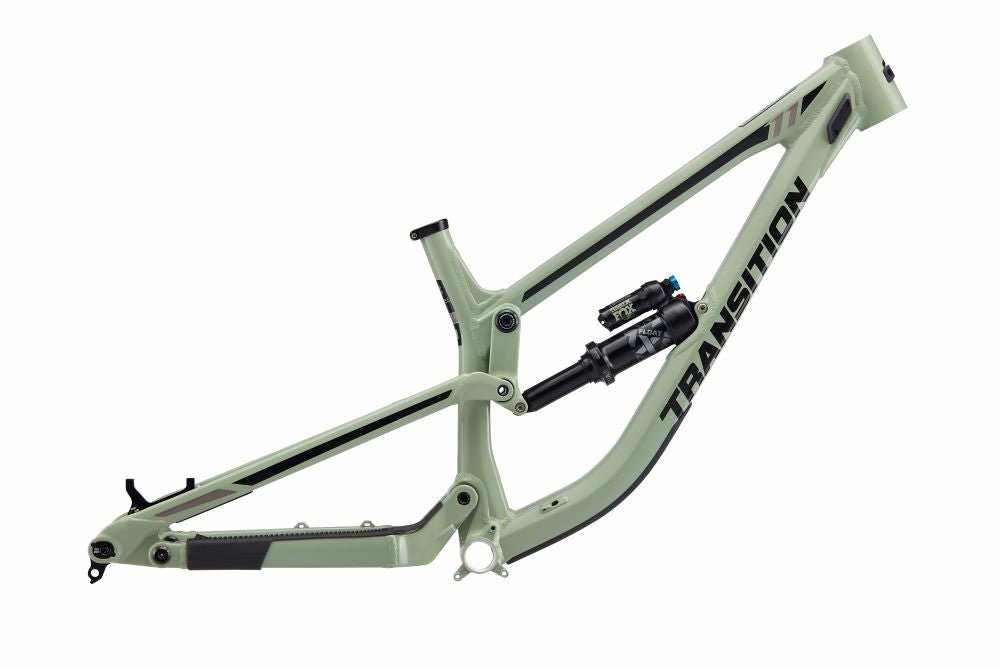

Colours - Brushed Raw, Misy Green

Frame Bearings - 2x 6903, 2x 6902, 4x 6802, 2x3802

Fork Axle To Crown - 606mm

Fork Offset - 46-48mm

Rear Shock Size - 250mm x 75mm

Shock Hardware - 25mm x 8mm

Headset (Top) - ZS56

Headset (Bottom) - ZS56

BB Shell - 83mm BSA Threaded

Chainline - 56.5mm

Rear Brake Mount - 200mm Post Mount, Max Rotor Size 223mm

Rear Derailleur Hanger - Transition 2 Position Adjustable

Rear Axle - Transition Axle for UDH, 12mm x 148mm Spacing

ISCG Tabs - ISCG05 (0mm Offset)

Seatpost Diameter - 31.6mm

Seat Clamp - 37mm

Max Seatpost Insertion - 115mm

Max Chainring Size - 27.5 x 2.5

Rear Shock Sag - In Development

Builds

Rear Shock -Fox Float x Performance Elite (200mm Travel/250x75mm)

Fork - Fox 40 Performance (203mm Travel/48mm Offset)

Headset - Transition Reach Adjust Headset

Stem - ANVL Direct Mount (40mm)

Bar - ANVL Mandrel Alloy 35 SM/MD (800X30) LG/XL (800x40)

Grips - ODI Elite Flow Lock-On

Saddle - SDG Patriot I-Beam

Seatpost - SDG I-Beam

Brakes - TRP DH-R EVO

Rotors - TRP R1 2.3 (223mm)

Shifter - SRAM GX DH

Derailleur -SRAM GX DH

Cassette - SRAM PG 720 (11-25t)

Chain - SRAM PC 1130

Crank - SRAM Descendent Alloy DH DUB (34t/165mm)

Chain Guide - Oneup Bash Guide

Rims - Stans Flow S2

Spokes - Pillar Straight Gauge

Hubs - Novatech D951SB/D902SB

Front Tire - Maxxis Assegai 3C DH (29X2.5)

Rear Tire - Maxxis Assegai 3C DH (27.5X2.4)

Other -Tubeless Valves & Stans Sealant (6oz)

Geometry

Size
