The integrated Vision Metron 5D ACR EVO handlebar maintains all the features that have made the 5D family unique, starting with the forward angle of 10, useful for improving breathing during the toughest climbs, up to the integrated cable routing, introduced in 2019 with the ACR version. However, it updates to be even lighter, weighing only 320g, while increasing stiffness and vibration absorption capacity, with the aim of efficiently transferring maximum bike control to the cyclist on every inch of asphalt. Aerodynamics have also been improved, lowering the stack by 1.5cm. But we didnt stop at creating the perfect handlebar for racing; we wanted it to be the best for passionate cyclists who want to capture the dream of riding like their champions, without having a product too focused on pure performance. Thats why we modified the ergonomics, introducing one more size, adjusting the reach depth (L-XL), so that everyone can feel perfectly comfortable on the bike.
- Aerodynamic integrated cable routing (ACR).
- Fully carbon construction.
- Compatible with Di2 with integrated junction box and wiring conduits.
- 5 mm drop offset providing a wider and more stable sprint platform and allowing for quicker transitions from hoods to drops.
- Handlebar attachment angle: -6.

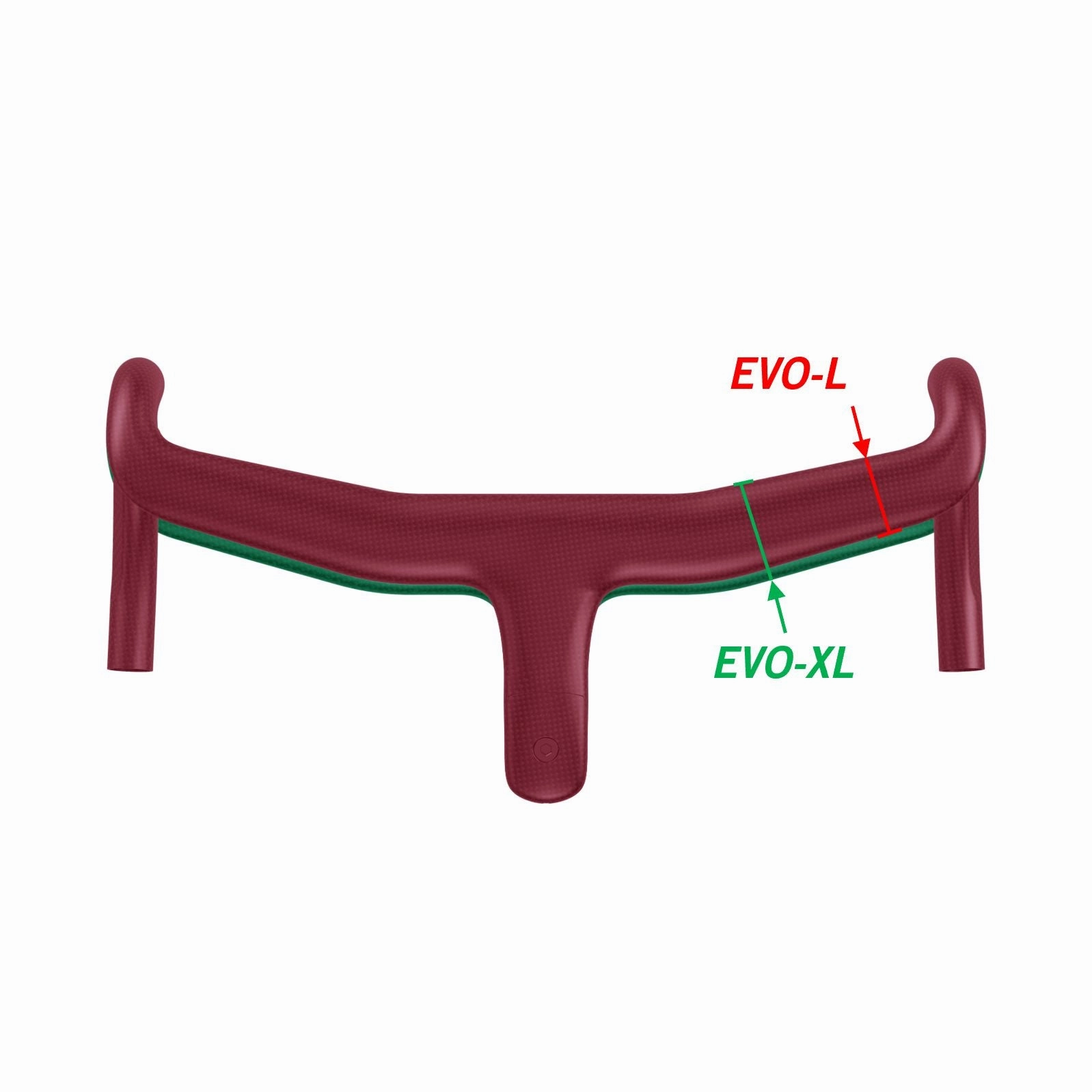

- EVO-XL MEASURES: -6 X L100W440mm (c-c), -6 X L120W420mm, 440mm (c-c), -6 X L130W420mm, 440mm (c-c), -6 X L140W420mm (c-c).
- EVO-L: -6 X L90W380mm, 400mm (c-c), -6 X L100W380mm, 400mm, 420mm (c-c), -6 X L110W400mm, 420mm (c-c), -6 X L120W400mm (c-c).
- Compact drop of 125mm, reach of 80mm Forward angle of 10.
- 3K carbon finish.
- Color: black.
- Weight: 320 grams (110 x 420mm).
